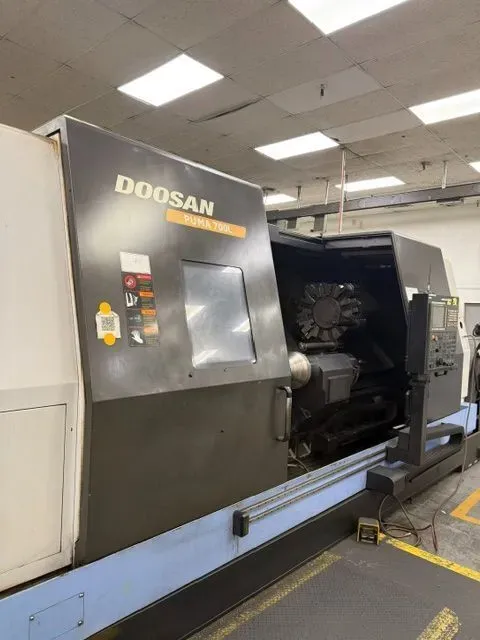

Doosan Fanuc 32iA CNC 1,500 rpm PUMA 700L 2 Axis

X axis travel: 18.5 in
Z axis travel: 127.4 in
Rapid traverse X: 480 ipm
Rapid traverse Z: 400 ipm
Control: Fanuc 32iA CNC
Bar capacity: 6.46 in
Swing over bed: 40.55 in
Turning diameter: 35.43 in
Machining length: 126 in
Distance between centers: 128 in
Spindle nose: A1-15
Spindle bore: 7.1 in
Spindle bar capacity: 6.5 in
Spindle speed: 1,500 rpm
Spindle motor: 60 hp
Gear ranges: 3
Chuck size: 24 in
12-station turret
Tailstock
Programmable tailstock
Tailstock quill diameter: 7.1 in
Tailstock taper: MT6
Tailstock quill travel: 7.9 in
Tailstock travel: 123 in
2 axes
SMW Autoblok steady rest
Samchully HCH-24 chuck
Chip conveyor
Mist collector
Machine weight: 48,000 lb
