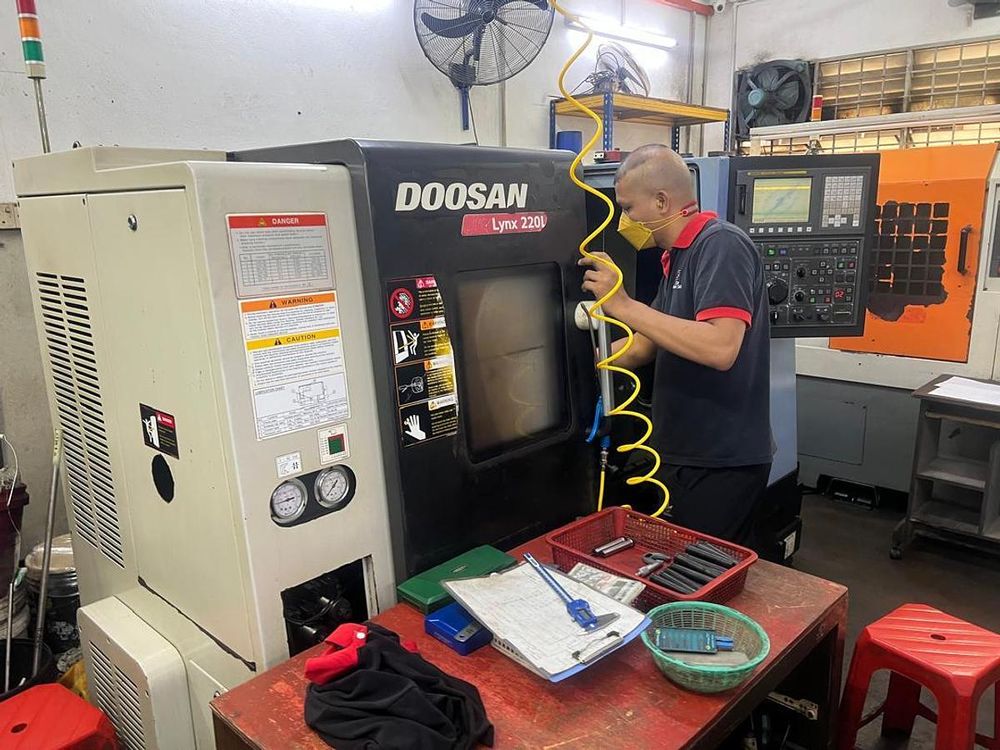

Doosan FANUC i-Series 5000 rpm LYNX220LB 2 Axis
Ref :
2762118-3-AW
Condition :
Used
Manufacturer :
Doosan
Controller :
FANUC i-Series
Spindle Speed :
5000 rpm
Model :
LYNX220LB
Nb Of Axis :
2 Axis
Year(s) :
2012
Quantity :
1
Location :
Seller or machines location:
ASIA (South East)
ASIA (South East)
Control FANUC i-Series
Swing over carriage 290 mm
Bar capacity 51 mm
Maximum cutting diameter 320 mm
Maximum cutting length 305 mm
Swing 510 mm
Tailstock quill diameter 65 mm
Tailstock quill stroke 80 mm
Tailstock taper MT #4
Turret positions 12 Station
Rapid feedrates XZ 30 x 36 m/minute
Spindle motor power 11 kW
Spindle nose A2-6
Spindle speed 5000 rpm
Tool size 25 x 25 mm
X axis travel 175 mm
Z axis travel 330 mm
Machine weight 3500 kg
