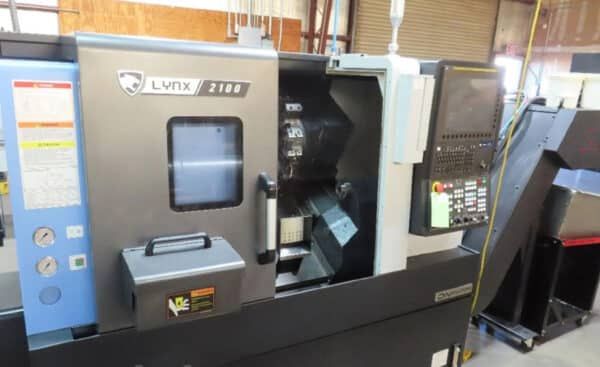

Doosan Fanuc i Series CNC control 6,000 RPM DN SOLUTIONS LYNX 2100A 2 Axis

Max turning diameter: 13.77"
Max turning length: 13.00"
Max bar capacity: 2.00"
Swing over bed: 23.60"
Swing over saddle: 15.70"

X-axis travel: 8.07"
Z-axis travel: 13.40"
Rapid traverse X-axis: 1181 IPM
Rapid traverse Z-axis: 1417 IPM

Spindle speed: 6,000 RPM
Spindle motor power: 15 HP
Spindle bore: 2.4"
Spindle nose: A2-5

Turret capacity: 12 stations
Turret index time: 0.11 sec
Max tool size: 1.0" x 1.0"

Quill diameter: 2.56"
Tailstock travel: 14.1"
Tailstock taper: MT4

Power: 24.21 kVA, 220V / 3-phase
Machine weight: 6,834 lb

LNS Super Hydrobar bar feeder
Royal quick grip collet chuck (6" capacity)
12-station automatic turret
Programmable tailstock
Tool presetter
Parts catcher
LNS chip conveyor
Foot switch
Boring tool holders
Square tool holders
