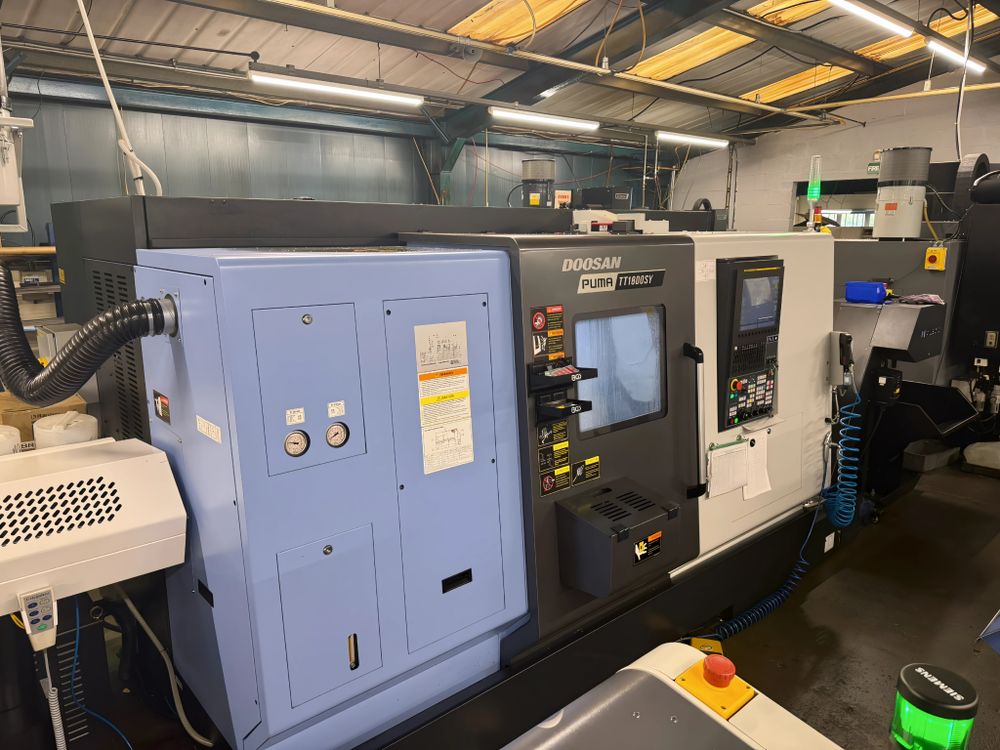

Doosan FANUC i Series PLUS 5000 rpm Puma TT1800SY 6 Axis

X axis travel: 165 mm
X2 axis travel: 190 mm
Y axis travel: ±50 mm
Z axis travel: 700 mm
Z2 axis travel: 720 mm
C axis: 0.001°

Sub spindle C axis: 0.001°
Control: FANUC i Series PLUS
Bar capacity: 65 mm
Swing: 230 mm

Swing over cross-slide: 230 mm
Maximum cutting diameter: 230 mm
Standard cutting diameter: 210 mm
Maximum cutting length: 230 mm
Spindle speed: 5000 rpm
Spindle motor power: 22/15 kW
Spindle nose: A2-6
Sub spindle speed: 5000 rpm
Sub spindle motor: 22/15 kW
Sub spindle stroke (A axis): 770 mm

Milling motor power: 5.5 kW
Milling RPM: 5000 rpm
Rapid feedrates (X, X2, Z, Z2, Y): 20 x 20 x 40 x 40 x 7.5 m/min
Tool size: 20 x 20 mm
Tooling configuration: BMT 55

Upper turret: 12 station (+12 half station)
Lower turret: 12 station (+12 half station)
Machine dimensions: 4905 x 2070 x 2080 mm
Machine weight: 8800 kg

Equipped With:
C axis
Milling
C axis on sub spindle
Collet chuck
Coolant
Interlocked guards
Low volt light
Magazine barfeed
Parts conveyor
Sub spindle
Swarf conveyor
Tool setter
Tooling
USB port
Y-axis
