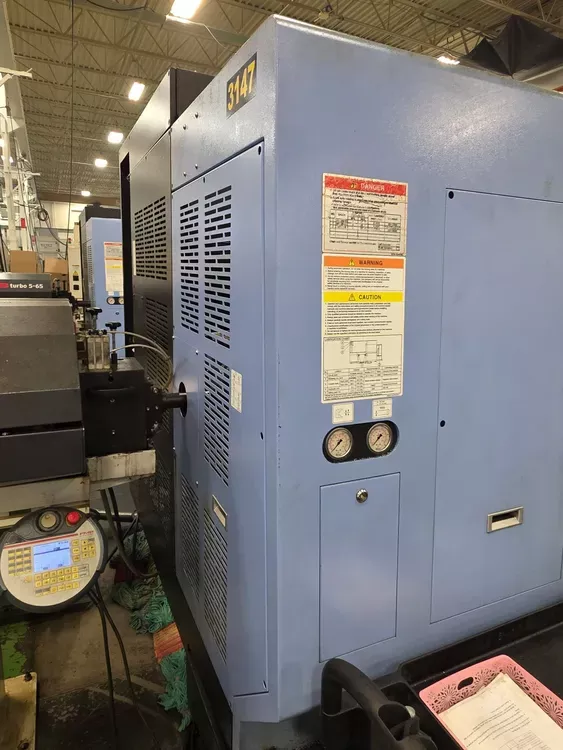

Doosan Fanuc OiTF CNC control 5,000 rpm PUMA TT-2100SYY 3 Axis

X-axis travel 6.5"
Y-axis travel 3.93"
Z-axis travel 27.5"
Sub spindle / W-axis travel 28.7"
C-axis indexing Full contouring C-axis
Machining length 27.38"
Swing over bed 9.05"
Maximum cutting diameter 9.05"
Distance between centers 38.5"
Bar capacity 2.625"
Sub spindle bar capacity 2.56"
Spindle speed 5,000 rpm
Spindle motor 35 hp
Spindle nose A2-6
Sub spindle speed 5,000 rpm
Sub spindle motor 25 hp
Sub spindle nose A2-6
Live milling speed 5,000 rpm
Live milling motor 10 hp
Rapid traverse rate X-axis 1,181 in/min
Rapid traverse rate Z-axis 1,575 in/min
Chuck size 8"
Sub spindle chuck size 8"
Turret capacity 12
Turret type BMT55
Turret 2 capacity 12
Turret 2 X-axis travel 6.5"
Turret 2 Z-axis travel 27.56"
Dimensions 93" x 153" (with conveyor 186") x 88.6"H
Weight 20,940 lbs

Fanuc OiTF CNC control
Doosan EZ Guide i programming
Twin 12-position turrets upper and lower with 24-position indexing
Y-axis on both turrets
Two integral spindles
Full contouring C-axes on both spindles
Mill/drill on upper and lower turrets
Parts catcher left and right
Programmable parts unloader
Parts conveyor
Bar feed interface
Standard factory static tooling
Doosan tool load monitoring system
Air blast system for chuck cleaning
MP Systems 1000 PSI high pressure coolant
