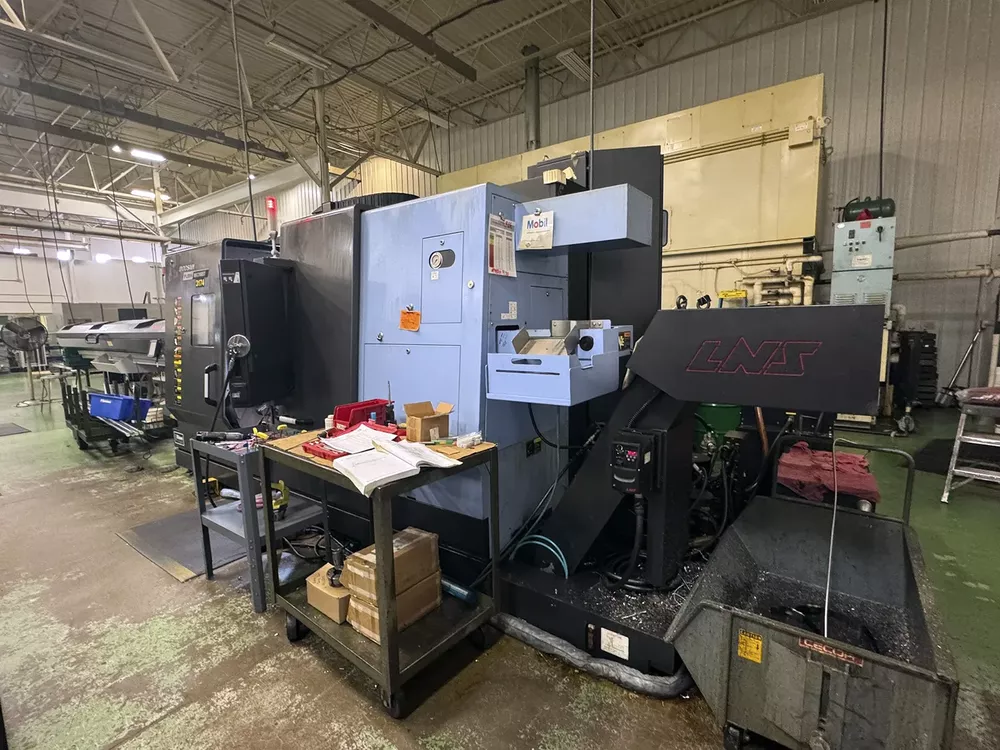

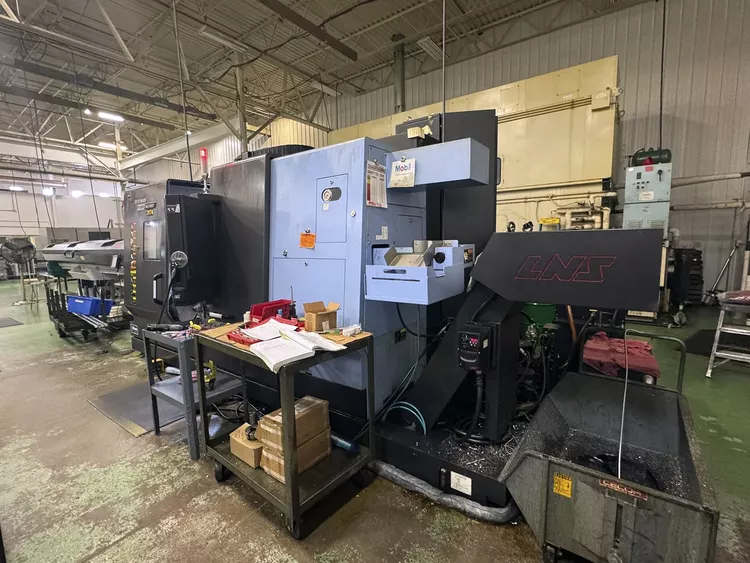

Doosan Fanuc Series 31i-Model B5 5,000 RPM PUMA MX2100ST 6 Axis

Z1-axis travel 41.3 in
X1-axis travel 22.2 in
X2-axis travel 7.4 in
Z2-axis travel 41.3 in
Y-axis travel 6.7 in
B-axis travel ±120°

Rapid traverse X-axis 1,417 in/min
Rapid traverse Z-axis 1,417 in/min
Rapid traverse Y-axis 1,024 in/min

Control Fanuc Series 31i-Model B5
Full contouring B-axis head
Tool presetter
Programmable parts unloader
Robotic parts conveyor
High-pressure coolant 1000 PSI

Swing over bed 29.5 in
Maximum machining diameter 21.3 in
Maximum turning length 40.2 in

Main spindle speed 5,000 RPM
Main spindle through-hole diameter 3 in
Capto C6 spindle taper
Sub-spindle

Lower turret with live milling
Main spindle chuck size 8 in
Additional 6 in chuck
Royal collet chuck

FMB Edge bar feeder 12 ft
LNS chip conveyor
