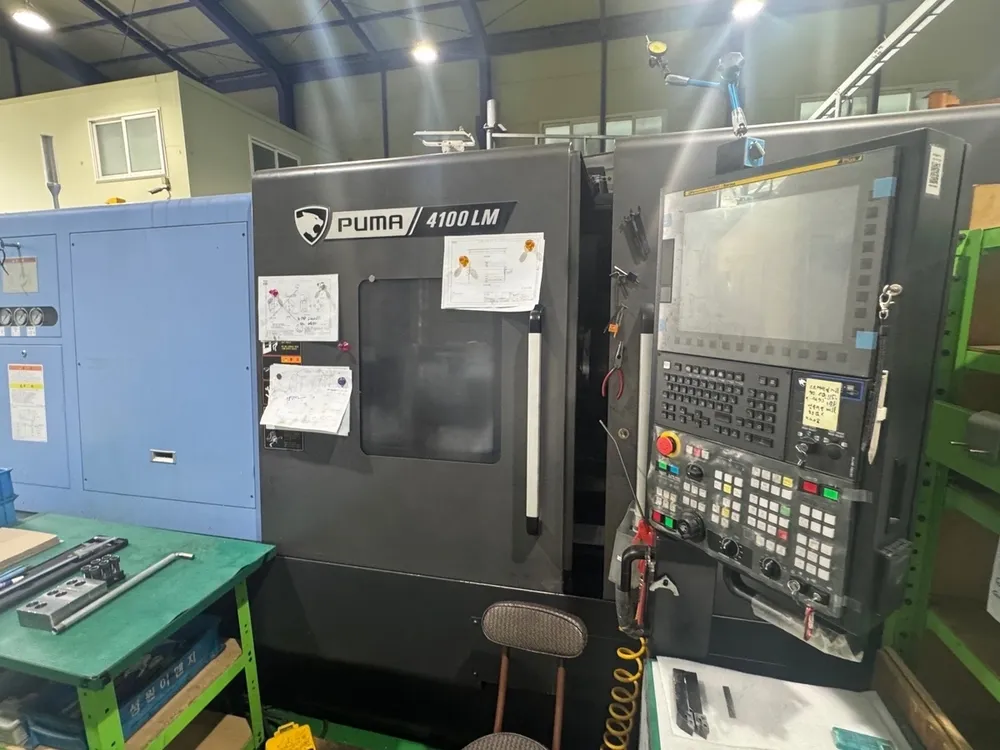

Doosan Fanuc Series I CNC Control 2,000 RPM DN SOLUTIONS PUMA 4100LMA 2 Axis

X-Axis Travel: 14.3′′
Z-Axis Travel: 84.8′′
C-Axis Indexing: 0.001°
Fanuc Series I CNC Control
Doosan EZ Guide I Conversational Programming
Custom Macro
Automatic Tool Setter
Chip Conveyor
Programmable Tailstock
Hydraulic Open/Close Steady Rest
Live Tooling
(2) I.D. Rotary Heads
(2) O.D. Rotary Heads
Spindle Chiller
Bar Capacity: 4.6′′
Swing Over Bed: 31.1′′
Turning Diameter: 22′′
Machining Length: 79.8′′
Distance Between Centers: 84.7′′
Spindle Bore: 5.2′′
Spindle Speed: 2,000 RPM
Spindle Power: 50 HP
Spindle Nose: A2-11
Milling Spindle Speed: 4,000 RPM
Milling Motor Power: 14.8 HP
Rapid Traverse Rate X-Axis: 630 IPM
Rapid Traverse Rate Z-Axis: 787 IPM
Chuck Size: 15′′
Turret Positions: 12
Tailstock Quill Diameter: 4.7′′
Tailstock Taper: MT6
Tailstock Quill Travel: 4.7′′
Tailstock Travel: 80.7′′
Machine Weight: 26,675 lbs
