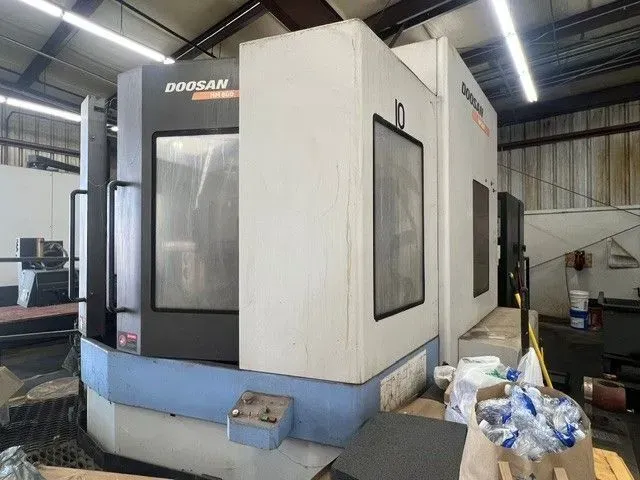

Doosan HM 8000 4 Axis

X-Axis Travel: 49.2 in
Y-Axis Travel: 39.4 in
Z-Axis Travel: 39.4 in
B-Axis Indexing: 0.001°
FANUC 18i-MB CNC Color Control
Inch/Metric
Spindle Chiller
Hydraulic Unit
Spindle Load Meter
Rigid Tapping
200 Pair Tool Offsets
Custom Macro
Embedded Ethernet
Handheld MPG
1,000 psi Coolant Through Spindle
Chip Conveyor
Spindle Speed: 6,000 rpm
Main Motor: 30 hp
Spindle Taper: CT50
Rapid Traverse X: 944 ipm
Rapid Traverse Y: 944 ipm
Rapid Traverse Z: 944 ipm
Cutting Feed Rate: 472 in/min
Automatic Tool Changer: 90 tools
Tool Change Time: 2.5 sec
Maximum Tool Diameter: 5.2 in
Maximum Tool Diameter (adjacent pockets empty): 9.8 in
Maximum Tool Length: 21.7 in
Maximum Tool Weight: 55 lb
Pallet Size: 31.5 × 31.5 in
Number of Pallets: 2
Maximum Pallet Load: 3,527 lb
Pallet Surface to Spindle Center: 3–42.3 in
Pallet Center to Spindle Gage Line: 7.9–47.2 in
2 Extra Pallets
Machine Weight: 46,296 lb
