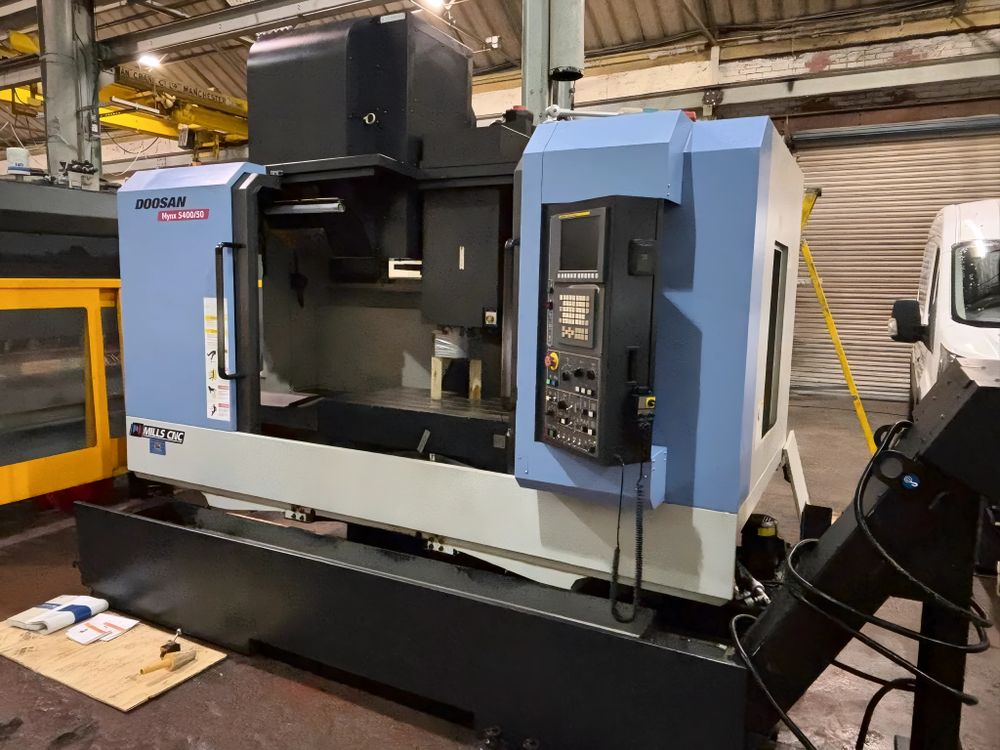

Doosan MYNX 5400 50 3 Axis

Traverses XYZ: 1020 x 540 x 530 mm
Rapid Feedrates XYZ: 30 x 30 x 24 m/min
Control: FANUC i Series
Spindle Speed: 6000 rpm
Spindle Motor Power: 18.5/15 kW
Tool Size: BT50
Tool Change Capacity: 24 Station
Maximum Tool Diameter: 125 mm
Maximum Tool Diameter with Empty Adjacent Pockets: 220 mm
Maximum Tool Weight: 15 kg
Maximum Workpiece Weight: 800 kg
Min - Max Height under Spindle: 150 - 680 mm
Table Size: 1200 x 540 mm
Machine Dimensions: 4322 x 2467 x 3015 mm
Machine Weight: 7200 kg

Features / Equipment
Coolant
Gearbox
Hardened & Ground Box Slideways
Interlocked Guards
Low Volt Light
Swarf Conveyor
Through Spindle Coolant
