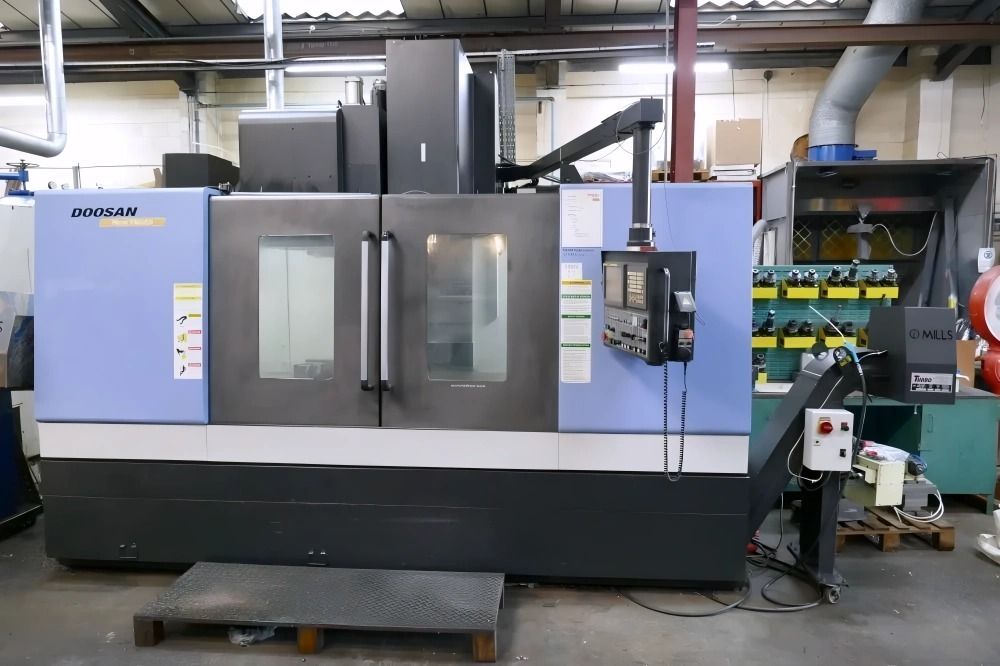

Doosan MYNX 750 50 3 Axis

X axis travel: 1525mm
Y axis travel: 762mm
Z axis travel: 625mm

4th-axis interface
4th-axis rotary table
Coolant
Interlocked guards
Swarf conveyor
Through-spindle coolant
FANUC 21i-MB control

Spindle speed: 6000rpm
Spindle motor power: 30/18.5kW
Min–max height under spindle: 200–825mm
Tool size: BT50

Rapid feedrate X: 30m/min
Rapid feedrate Y: 30m/min
Rapid feedrate Z: 24m/min

Maximum tool diameter: 125mm
Maximum tool diameter with empty adjacent pockets: 230mm
Maximum tool length: 350mm
Maximum tool weight: 15kg
Tool change capacity: 40 stations
Tool change time (chip to chip): 6s

Table size: 1600 × 750mm

Machine dimensions: 5000 × 4050 × 3235mm
Machine weight: 13500kg
