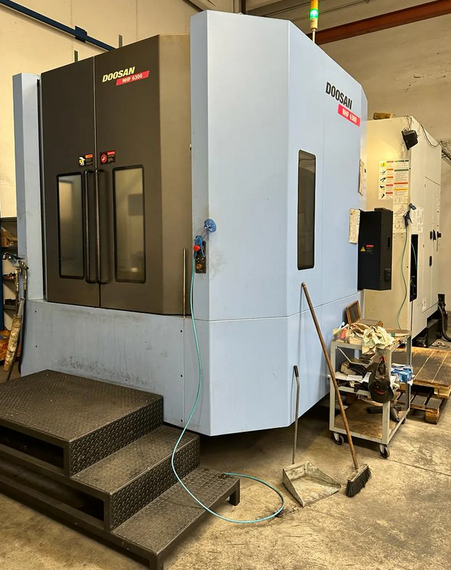

Doosan NHP 6300 4 Axis

X-Axis Travel 1050 mm
Y-Axis Travel 900 mm
Z-Axis Travel 1000 mm
B-Axis Table Division 1°

Number of Pallets 2
Pallet Length 630 mm
Pallet Width 630 mm
Maximum Workpiece Weight 1500 kg
Pallet Change Time 12 s
Control GE FANUC Series 31i-Model B
Tool Magazine 60 Places
Tool Diameter Max 125 mm
Diameter with Free Adjacent Pockets 320 mm
Tool Length 630 mm
Max Tool Weight 25 kg
Tool Change Time 2 s
Chip-to-Chip Time 5 s
Spindle Nose ISO 50
Distance from Horizontal Spindle to Table 75–975 mm
Spindle Speed 40–10,000 rpm Stepless
Spindle Power 18.5 / 22 kW
Rapid Traverse 60 m/min
Voltage 3×400 V 50 Hz
Machine Weight ≈18,000 kg
Overall Dimensions 7410×3930×3479 mm
Coolant System 925 l
Coolant Through Spindle
