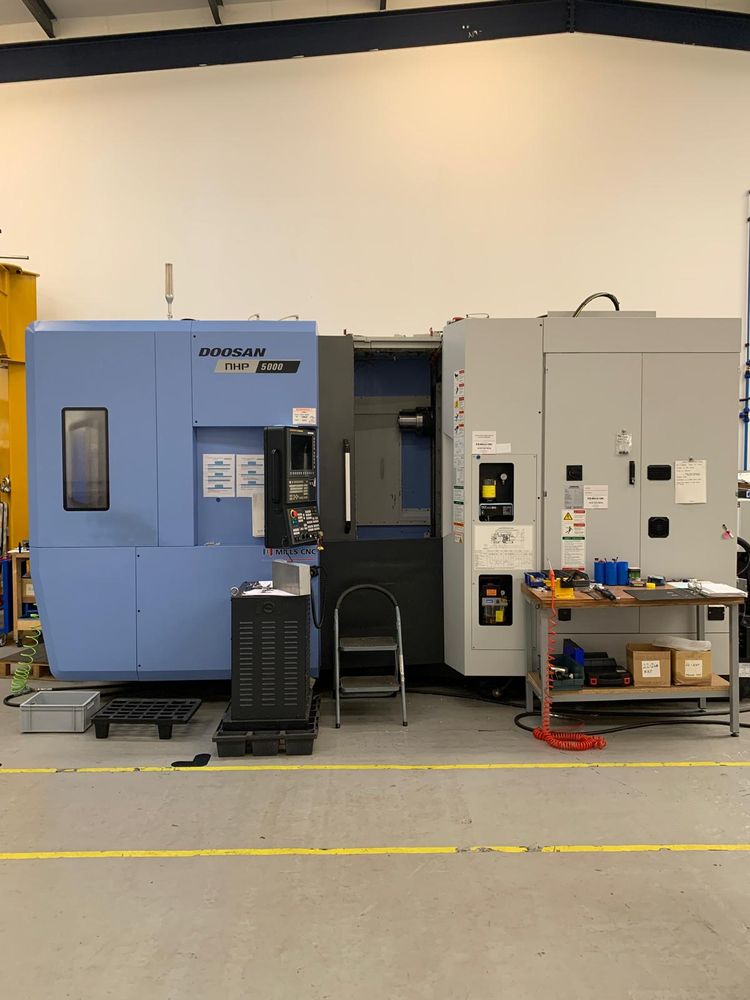

Doosan NHP5000 4 Axis

FX6002 Filtermist
X-axis travel 730 mm
Y-axis travel 730 mm
Z-axis travel 880 mm
Spindle centre to pallet top 80–810 mm
Spindle nose to pallet centre 100–980 mm
Rapid traverse X/Y/Z 60 m/min
Maximum feedrate 30000 mm/min
Full B-axis pallet indexing
Fanuc 31iB control
Absolute encoder feedback
Maximum workpiece envelope 800 mm diameter × 1000 mm height
Spindle speed 15000 rpm
Spindle taper BT40 (BIG Plus)
Pull stud Nikken PS-806
Maximum spindle torque 229.9 / 206.9 / 147.2 / 119.4 Nm
Spindle motor 18.5 / 30 kW
Axis motor X 5.5 kW
Axis motor Y 4.5 kW
Axis motor Z (with brake) 5.5 kW
Tool shank BT40
Maximum tool length 550 mm
Maximum tool weight 12 kg
Maximum tool diameter (any pocket) 75 mm
Maximum tool diameter (adjacent pockets empty) 170 mm
Tool selection random
Tool magazine capacity 60 tools
Tool change time tool-to-tool 0.9 / 1.3 sec
Tool change time chip-to-chip 2.8 / 3.2 sec
Power requirement 80 kVA
Air pressure 5.5 kgf/cm²
Pallet size 500 mm square
Pallet surface 24 × M16
Maximum pallet load 500 kg
Machine dimensions 2680 × 5450 mm
Machine height 2880 mm
Machine weight 11500 kg
