Doosan PUMA V550

Ref : 2750322-3-MT

Condition : Used

Manufacturer : Doosan

Model : PUMA V550

Short Description : -

Year(s) : 2015

Quantity : 1

Location : Seller or machines location:
EUROPE (Central and Eastern)

Year: 2015

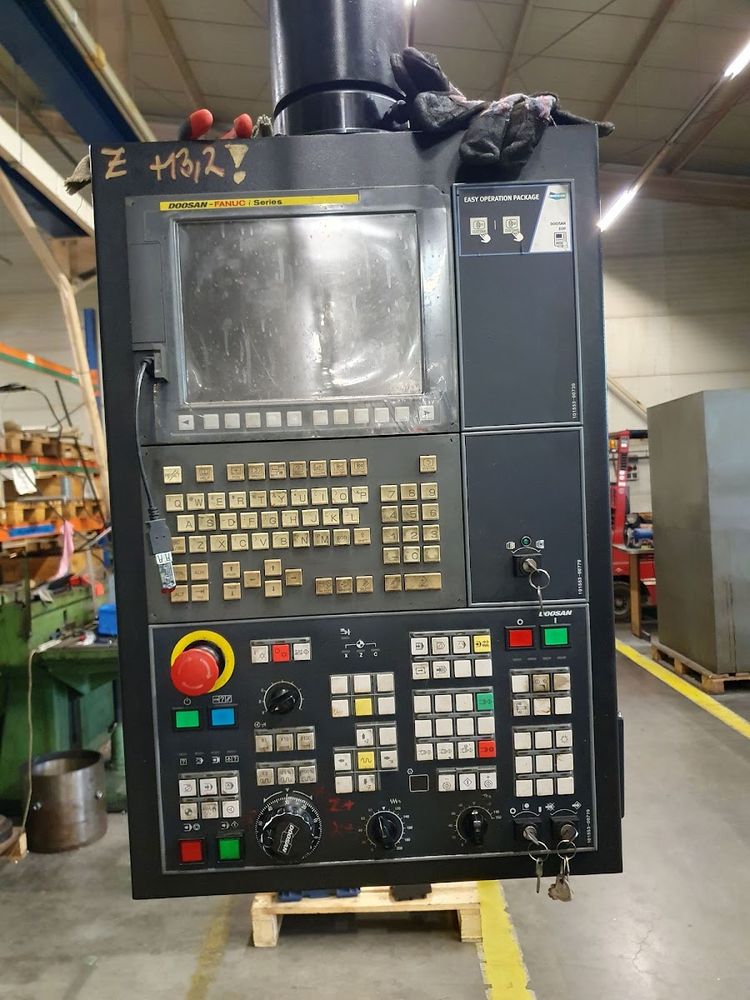

Control system Fanuc
Max. diameter of workpiece 800 mm

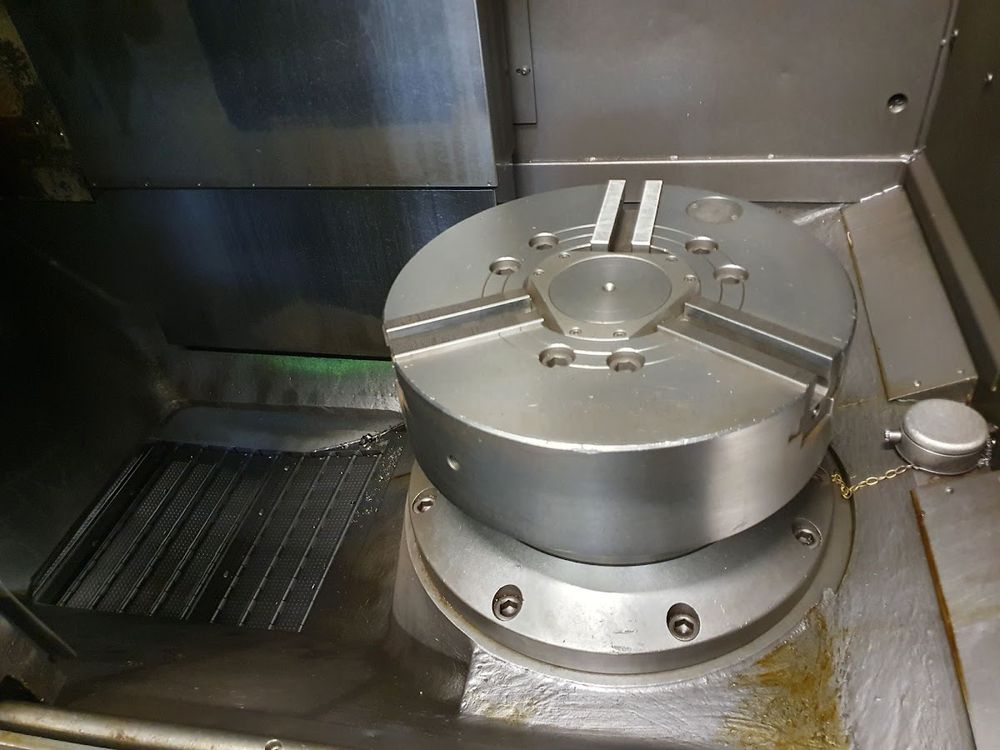

Clamping diameter of rotary table 450 mm
Max. workpiece height 750 mm
Ram travel (Z) 780 mm
Driven Tools NO
Tool magazine YES
Number of positions in magazine 8
Travel X-axis 390 mm
Travel Z-axis 780 mm
Table rotation 20 - 2000 /min
Main motor power 30/37 kW
Max. torque of spindle 2243/2766 Nm
Machine weight 9000 kg
Machine dimensions l x w x h 2000x2800x3300 mm

The machine is in good technical condition, under power, after agreement is possible to test it.
