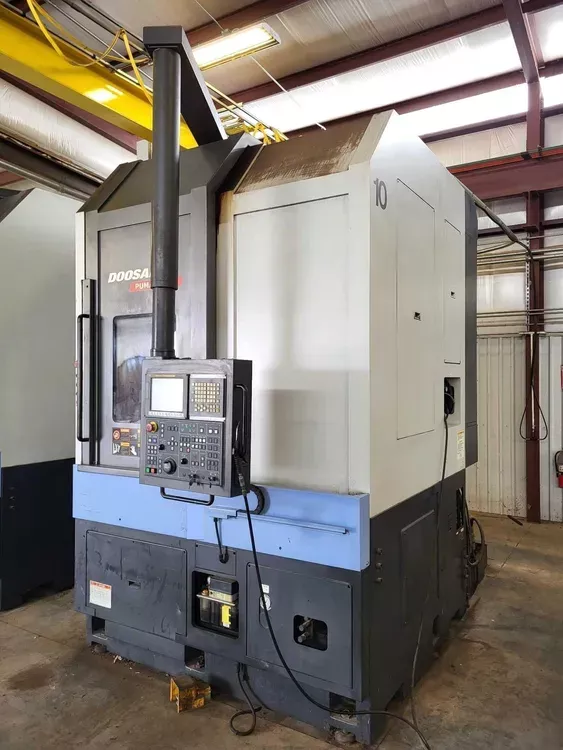

Doosan VT 900 Max. swing diameter 39.4"

X-axis travel 18.5"
Z-axis travel 33.46"
X-axis rapid traverse 787 IPM
Z-axis rapid traverse 787 IPM
CNC control FANUC Series i
Max. swing diameter 39.4"
Max. turning diameter 35.4"
Max. turning length 33.4"
Max. spindle speed 1800 RPM
Max. spindle power 45 KW / 60 HP
Max. spindle torque 4443 N·M
Number of tool stations 12
Chuck SAMCHULLY HC-32-SE 3-jaw solid vertical chuck
Rear discharge chip conveyor
12 station turret with tool holders
All available tool holders and chuck jaws
Tool load monitoring
CoolJet interface for high pressure systems
Ethernet downloading capabilities
512 KB memory
64 offsets
Approximate weight 27,500 lbs
