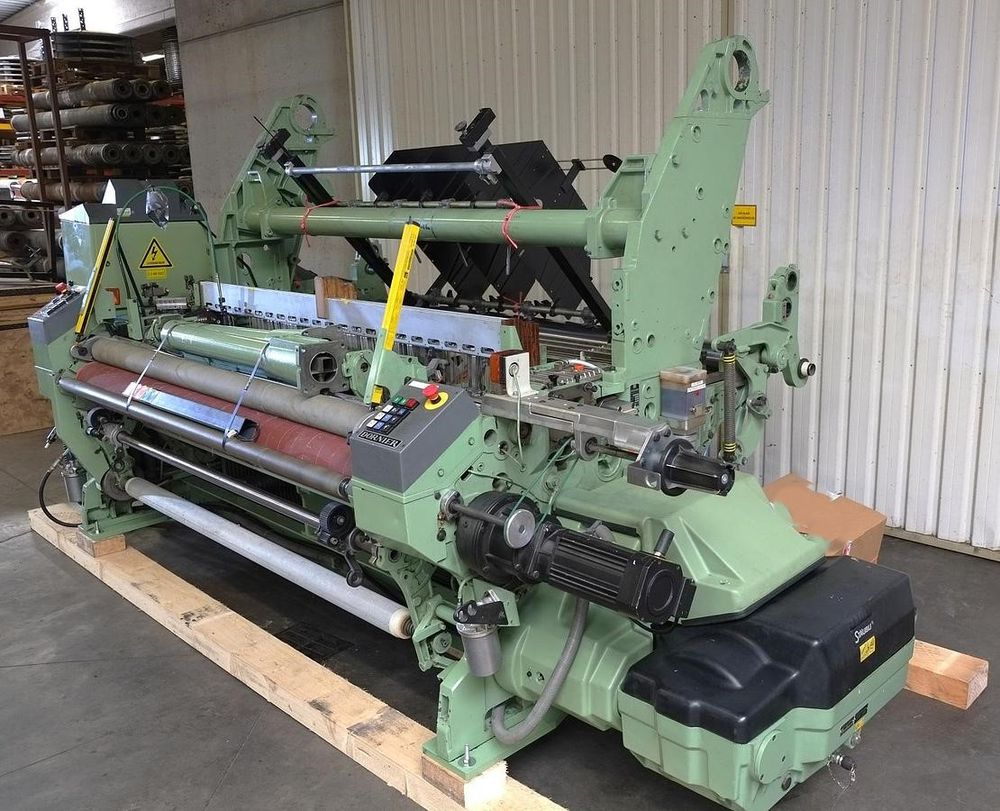

Dornier HTVM/E 200 Cm Staubli dobby 2861/2
EUROPE (Western and Northern)
Tire-cord rapier loom
With electronic STAUBLI dobby 2861/2, 2004, 16 levers installed.
Details :
Heavy electronic let-off motor for ground- and upper beam
and heavy take-up motor controlled by LENZE devices
Dialog panel 2, 2 mechanical weft colours (pick/pick)
combined bobbin-feeder support
2 weft accumulators DORNIER type CHRONO X2-M (CANBUS)

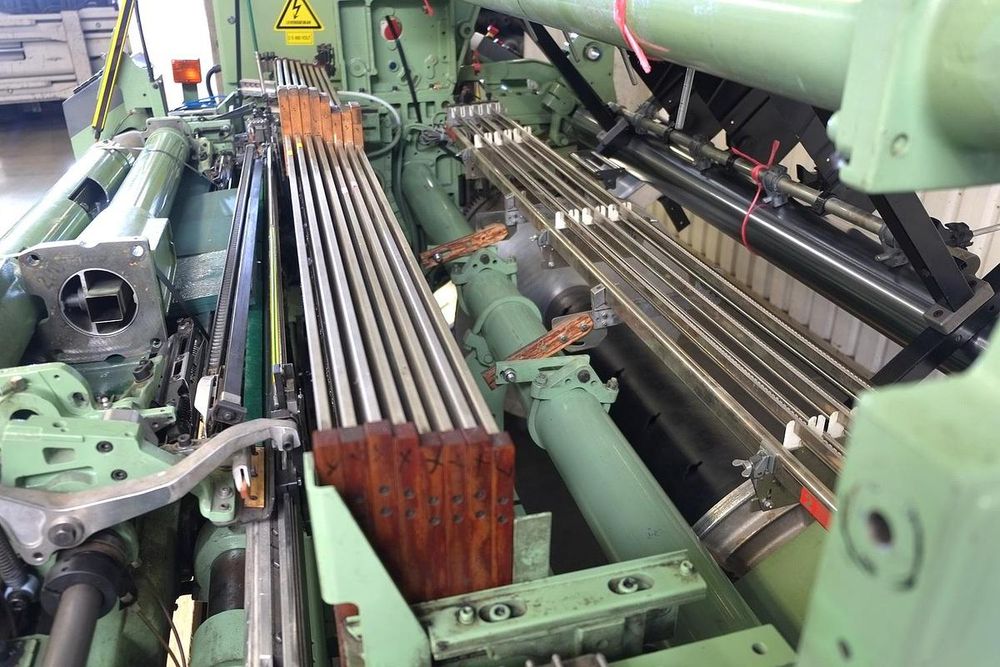

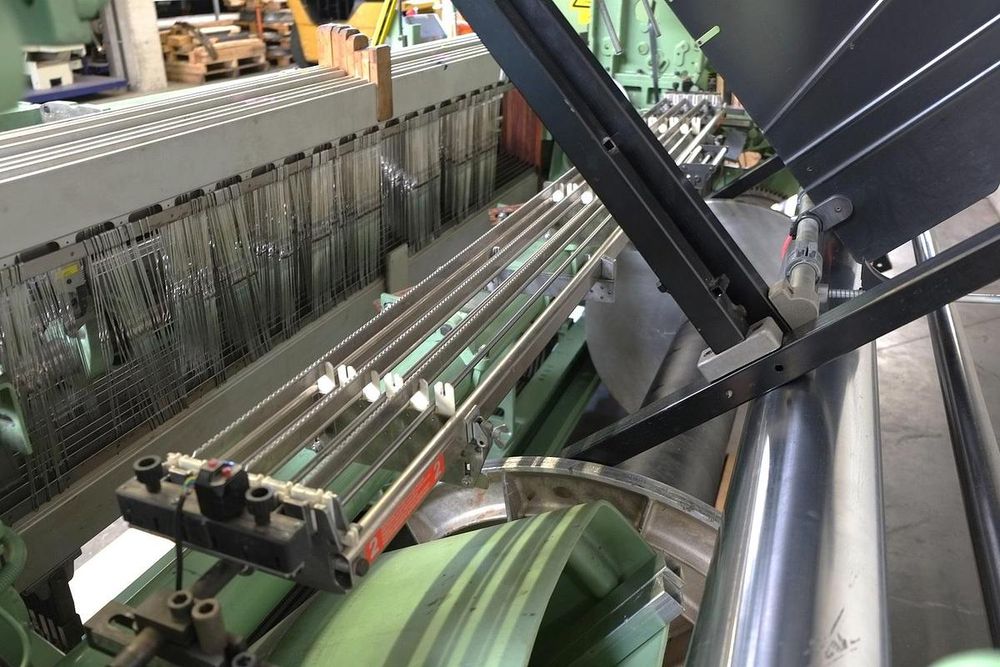

GROB warp motion with 3 detection bars
8 heald frames 13” C, healds as on loom
1 tension roll diam. 140 mm with spring right and left side
2 pressure rolls, prepared for tucking-in devices but without tucking-in devices

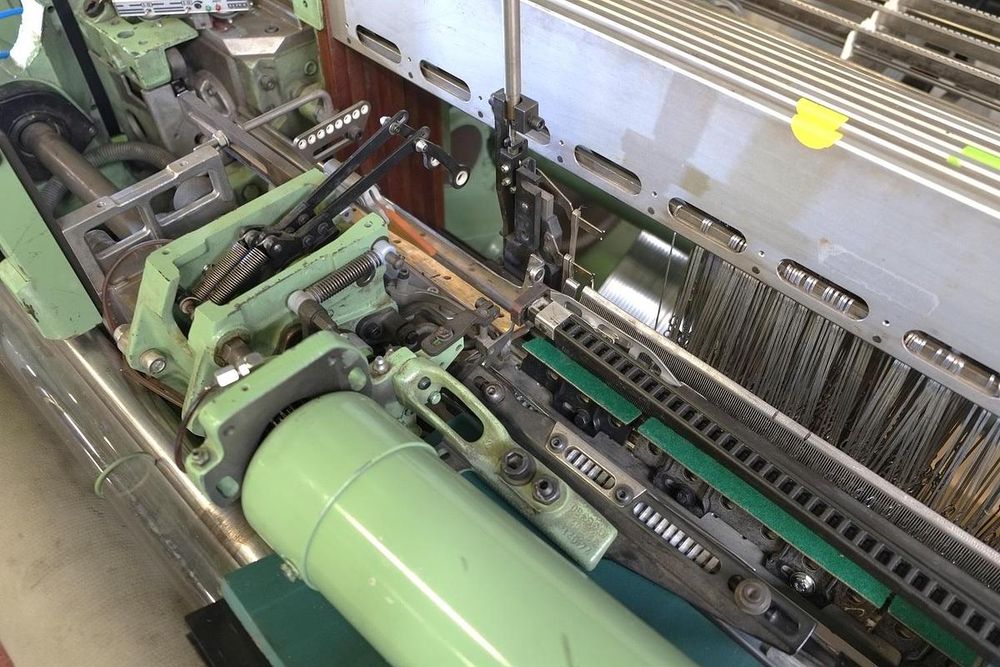

mechanical waste cutter RHS & LHS, standard temples
left and right grippers, waste split system right and left side
take-up system of the waste selvedge with waste dustbin
cloth roll drive system, 1 cloth roller
ground warp beam diameter 800mm
ground gear with adapters
motorized upper beam construction
without fancy warp beam
without upper guiding roll
without upper warp gear.
Including Tire cord frame, maximum nominal width 200cm.
Details : walking floor / pneumatic Festo driving system with heavy Festo pneumatic pistons RHS&LHS with following functions
1. Cylinders downwards /
2. Compensator /
3. Cylinders upwards;
working air pressure 6 bar/ fixation profile for reed / warp detection
Grob with 5 detection bars / guiding rolls (max. 218cm) / walking floor.
Dimensions mounted construction
Tire cord frame : 261cm x 258cm x 125cm
