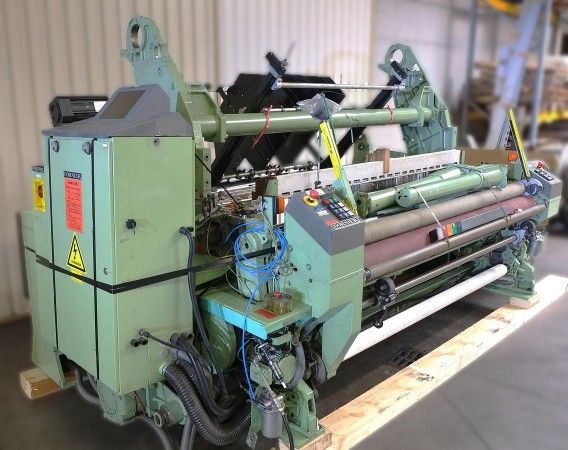

Dornier HTVM/E 200 Cm Staubli electronic dobby 2861/2
Ref :
2775604-1-GO
Condition :
Used
Manufacturer :
Dornier
Model :
HTVM/E
Width :
200 Cm
Motion (dobby, Cam, Taffetas) :
Staubli electronic dobby 2861/2
Year(s) :
2004
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Tire-cord rapier loom
Width 2000mm, with electronic STAUBLI dobby 2861/2
16 levers installed.
Heavy electronic let-off motor for ground- and
upper beam and heavy take-up motor controlled by LENZE devices, Dialog panel 2
2 mechanical weft mixer (pick/pick)
2 weft accumulators DORNIER type CHRONO X2-M (CANBUS)
GROB warp motion with 3 detection bars
8 heald frames 13” C
1 tension roll diam. 140 mm with spring right and left side
2 pressure rolls, mechanical
waste cutter RHS & LHS, standard temples, left and right rigid grippers
1 cloth roller, Warp beam diameter 800mm
