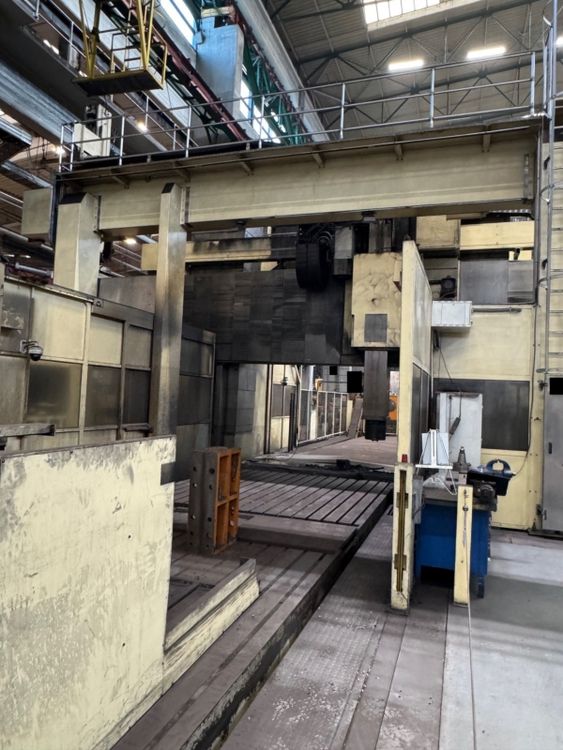

Dorries Scharmann 4FZT 2,500 RPM

X axis travel: 11,000 mm
Y axis travel: 3,000 mm
Z axis travel: 4,400 mm
Control: SINUMERIK 880
Machining length: 11,000 mm
Passage width: 4,400 mm
Passage height: 3,000 mm
Table width: 3,450 mm
Total table length: 13,400 mm
Single table length: 6,200 mm
Total clamping area: 3,450 x 11,000 mm
Single table clamping area: 3,450 x 5,000 mm
Max workpiece weight on total table: 112 t
Max workpiece weight on single table: 80 t
Crossrail travel: 2,000 mm
Spindle motor power: 80 kW
Spindle speed: 2,500 RPM
Machine dimensions: 31,100 x 13,230 x 8,450 mm
2 tables
8 machining heads
2 chip conveyors
Documentation
CE marking
