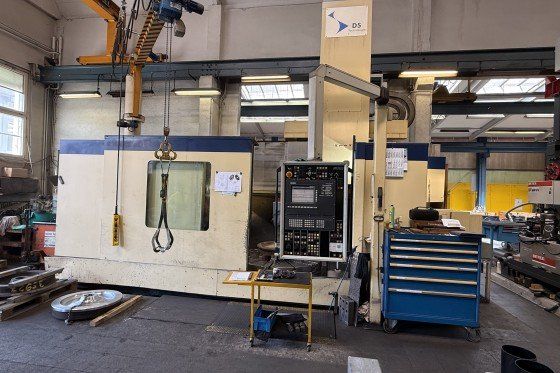

Dorries Scharmann VCE 2000 FMC Table diameter: 1600 mm

Ref : 2725637-3-GO

Condition : Used

Manufacturer : Dorries Scharmann

Model : VCE 2000 FMC

Short Description : Table diameter: 1600 mm

Year(s) : 1998

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

DS DORRIES SCHARNANN VCE 2000 FMC
1998

Control: Siemens 840C
Max turning diameter: 2000 mm
Table diameter: 1600 mm
Horizontal movement support: 1150 mm
Stroke ram left: 995 mm
ATC revolver: 24
Speed range: 280 RPM
Total power: 60 kW
Maximum turning height: 995 mm
C-axis: 360000°
Live tool power: 30 kW
Live tool speed: 3000 RPM
Live tool interface: SK50
Grinding spindle power: 30 kW
Grinding spindle speed: 3000 RPM
Grinding spindle interface: SK50
Workload capacity: 10000 kg
Chip conveyor included
Tool holders included
Max tool height: 400 mm
Length: 10200 mm
Width: 8200 mm
Height: 8200 mm
Weight: 42000 kg
