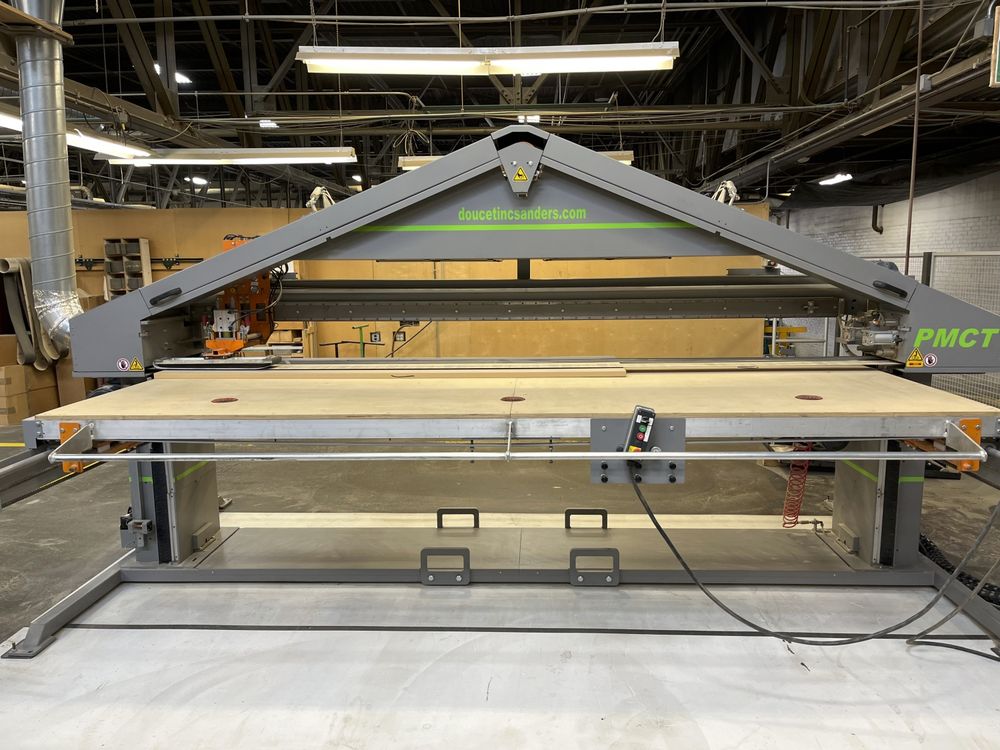

Doucet PMCTA-HD-2

Stroke Sander
Heavy Duty Automatic Triangular Belt Sander and Polisher
Table Size: 48"x144"
Aluminum table cover with Russian Cherry Wood plywood surface
Table weigh capacity: 500lbs
Two abrasive belts: 6"x374" 4750 f.p.m
Pulleys: 10" dia. x 6.25" face
Interchangeable Pressure Pad. 4"x6" area
Light fixture over working table
Pneumatic Tensioner
Belt Guards
Sanding belt breaking detector
Dust collector outlet: 8" diameter @2400 cfm
Compressed air requirement: 90psi
7.5 Hp T.E.F.C motor. 1750 rpm
Table is moving along dual rails on the width axis, powered by electric motor with variable speed at a continuous rate along the width of the material.
Travel speed varies between 0.5 to 36 fpm.
Interchangeable Pressure Pad and Contact Wheel carriage are powered along the length axis by electric motor with variable speed up to 225 fpm.
The stroke is adjustable by the HMI based on material length on the table.
Main operating buttons and touchscreen display are located on front door of control panel.
Remote operating console located on front of table, hand held type device, will allow Emergency shutoff, Automatic cycle start/stop and transversal manual movement.
Central power and control panel with Omron PLC, panel includes VFDs and other electric components.
External hookup for distance trouble shooting and programming changes via Ethernet card.
