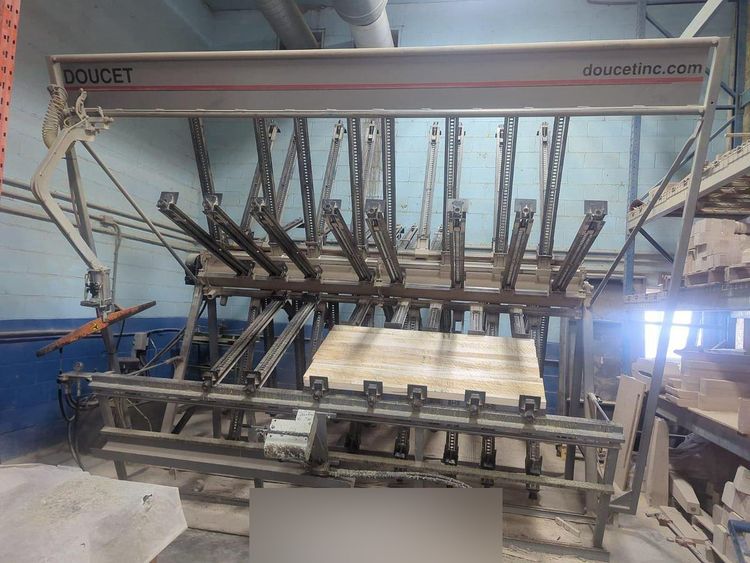

Doucet SRX-8-10, 5-64-50-R

Used clamp carrier
Heavy-duty, 8-section hydraulic clamp carrier designed for high-volume panel assembly, stair components, and architectural millwork.
The Doucet SRX is widely regarded as the most robust clamp carrier in the woodworking industry.

Doucet Machineries
Unmatched Durability: Built with a sturdy tubular steel frame and the "heaviest clamps in the industry," these machines are engineered for decades of service.
Superior Glue Joints: Unlike manual racks, the SRX’s hydraulic tightening ensures consistent,
infinitely adjustable pressure (up to 5,000 lbs force), leading to perfect glue lines every time.
Proven Productivity: The 8-section design significantly reduces non-value-added time.
A single operator can cycle through sections while glue dries, increasing throughput by 15–20% compared to traditional methods.
Modern Features: As a 2017 model, it benefits from modern safety and ergonomic
features like joystick controls and rapid-change clamps that minimize setup time between different panel lengths.

Based on the Doucet SRX Series design standards, this 2017 unit features:
Capacity & Configuration:
Sections: 8 clamping layers (sections).
Working Width: Approximately 10.5 feet usable clamping length.
Clamp Type: Heavy-duty "U-shaped" notched bars designed to prevent bowing.
Max Opening: 50"

Hydraulic Power:
Motor: 5 HP hydraulic unit for both frame rotation and optional tightening.
Controls: Joystick-controlled hydraulic tightening tool and forward/reverse rotation.
Torque Calibration: Integrated valve allows for precise tightening pressure relative to material thickness.

Auxiliary Features:
Panel Flattener: Sliding pneumatic flattener providing up to 750 lbs of downward force to ensure flush surfaces.
