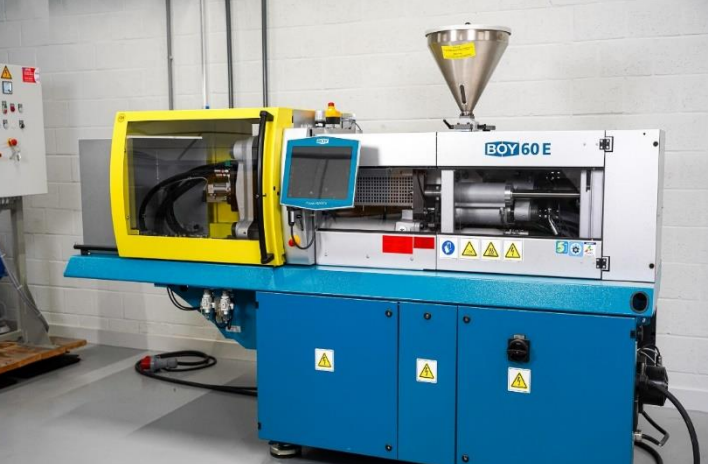

Boy, Dr 60E 60 T

Working hours: 50
Screw diameter: 32 mm
Injection pressure max.: 2.142 bar
Shotvolume max.: 100,5 cm3
Clamping force: 60 T
Max. distance between holms: 360 x 335 mm
Min. mould height: 250 mm
Distance between plates max. 650 mm
Measurements: 3.450 x 1.150 x 1.950 mm
Weight: 2.250 kg

Options:
• Procan ALPHA 4 display
• Hydraulic core pull (2x)
• Air valve (2x)
• Interface package (incl. RS232/485, OPC-UA + Licence fee)
• 4 Free programmable AIO’s
• Robot interface Euromap 67
• Interface between safety fence and machine Euromap 78
• Colouring contact interface
• Quick change mould package
– Cooling circuits (3x) on fixed & moving platen
– Water distributor 8-fold
– Ejector with quick coupling
– Open nozzle with thread tip
• Energy distribution box 6-fold (feeding via second cable)
– 3x 400V
– 3x 220V
• Oil filling (Econfluid, ISO-32)
