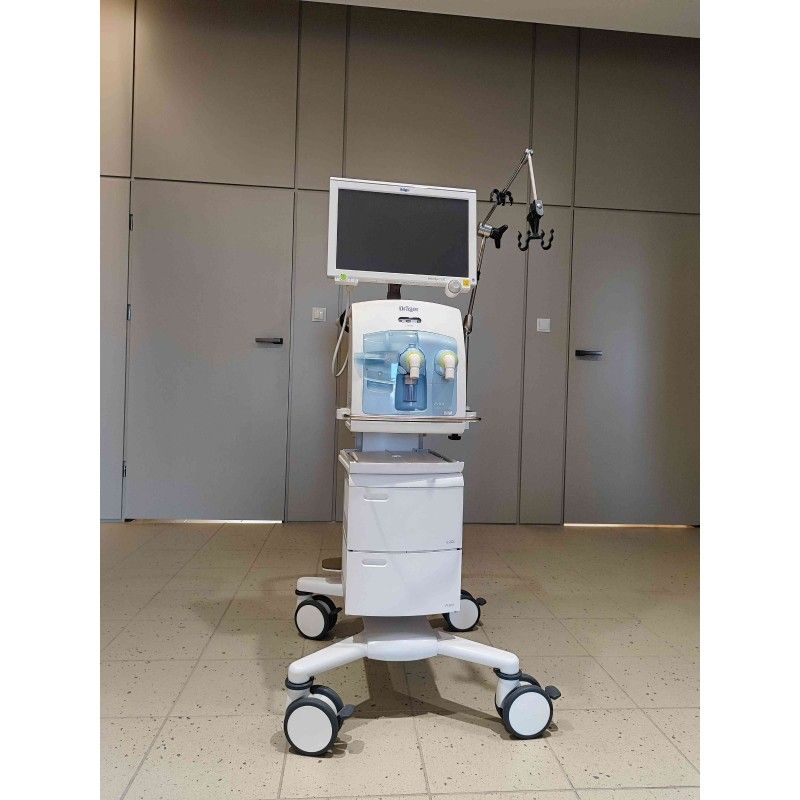

Dräger Evita Infinity V500

The Dräger Evita Infinity V500 is an advanced ventilator suitable for
hospital use and patient transport, thanks to its flexibility and various power options​
Specifications of the Dräger Evita Infinity V500 Ventilator

Dimensions:
Height: 142 cm
Width: 57.7 cm
Depth: 68.7 cm
Weight: 59 kg

Display:
Type: TFT color touchscreen
Size: 17 inches (43.2 cm) diagonal
Ports: 3 external RS232 connections, 6 USB ports, 3 DVI outputs,
1 LAN port, 2 RJ45 connectors

Patient Types:
Adults, children, and neonates

Ventilation Modes:
Volume-controlled ventilation: VC-CMV, VC-SIMV, VC-AC, VC-MMV
Pressure-controlled ventilation: PC-CMV, PC-BIPAP1, PC-SIMV, PC-AC, PC-APRV, PC-PSV
Support for spontaneous breathing: SPN-CPAP/PS, SPN-CPAP/VS, SPN-CPAP, SPN-PPS

Enhancements:
AutoFlow / Volume Guarantee
Variable Pressure Support
Intelligent Pulmonary View
Automatic Tube Compensation
Mask ventilation
SmartCare/PS 2.0 – automated clinical protocol

Therapy Types:
Invasive ventilation (intubation)
Non-invasive ventilation
Oxygen therapy

Gas Supply:
O₂ pressure: 2.7 to 6.0 bar
Air pressure: 2.7 to 6.0 bar

Pressure Levels:
Inspiratory pressure (Pinsp): 1 to 95 mbar
Inspiratory pressure limit (Pmax): 2 to 100 mbar
PEEP: 0 to 50 mbar

Ventilation Rate:
Adults: 0.5 to 98/min; Children and neonates: 0.5 to 150/min
Inspiration time (Ti): Adults 0.11 to 10 s; Children and neonates 0.1 to 10 s
Tidal volume: Adults 0.1 to 3.0 L; Children 0.02 to 0.3 L; Neonates 0.002 to 0.1 L

Additional Features:
Monitoring of various respiratory parameters and
automatic tube compensation enhance effective therapy for
patients with diverse needs.
