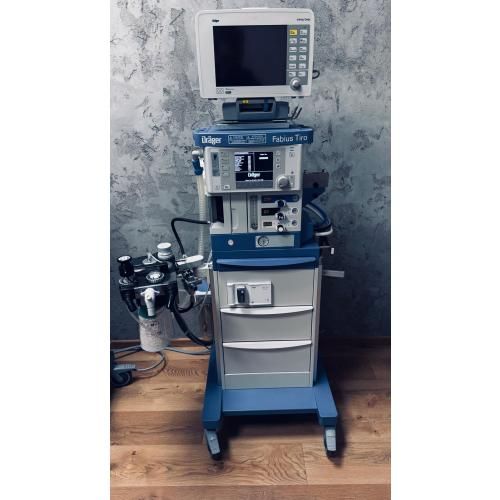

Drager Fabius Tiro

Drager Fabius Tiro from 2020
Only 151 hours of use!
Unit equipped with:
Delta Patient Monitor
SCIO Four OXI Plus Gas Analyzer
Single-use absorber
Fully tested by Drager Engineer

Features
E-vent Piston Ventilator: Precise Ventilation Without Driving Gas
High-Visibility Digital Display: Real-time monitoring
Intuitive Dräger User Interface: Easy to navigate and operate
Ventilation Options: Adaptable to patient needs
Compact Breathing System (COSY): Easy to clean and maintain
Compatibility with Dräger Infinity® Gas Monitor: Optimal patient monitoring
Modular Design: Wall, ceiling, or mobile cart options for flexible installation

Technical Details
Dimensions: cart version: 77.2 × 136.1 × 83.8 cm ;
wall/ceiling version: 72.1 × 55.6 × 77.5 cm
Weight: cart version: 116.6 kg ; wall/ceiling version: 48.7 kg
Electrical Supply: 100-240 V, 50/60 Hz, 70 VA
Battery Autonomy: minimum 45 min, up to 120 min
Ventilation Modes: colume-controlled ventilation,
pressure-controlled ventilation, pressure support,
SIMV/PS (Synchronized Intermittent Mandatory Ventilation/
Pressure Support), manual ventilation, spontaneous breathing
Respiratory Rate Range: 4 to 60 bpm
PEEP (Positive End-Expiratory Pressure): 0 to 20 cmH₂O
Tidal Volume: 20 to 1400 mL (VC), 20 to 1100 mL (SIMV/PS)
Inspiratory Pressure: PEEP + 5 to 65 cmH₂O
Inspiratory Flow Rate: 10 to 85 L/min
Alarm and Safety Features: minimum O₂ concentration of
23% in O₂/N₂O mixture, automatic N₂O shut-off if O₂ is cut off or < 0.2 L/min,
visual and audible indicators in case of failure

Compatible Accessories
Dräger CLIC absorber (option: 1.2 L prefilled or 1.5 L reusable)
Vaporizer storage holder
Patient system with integrated heating element
Auxiliary O₂ flowmeter
Foldable side tray
Medical-grade power strip
Side storage basket
Optional color display
Integration with Dräger Infinity® patient monitors
