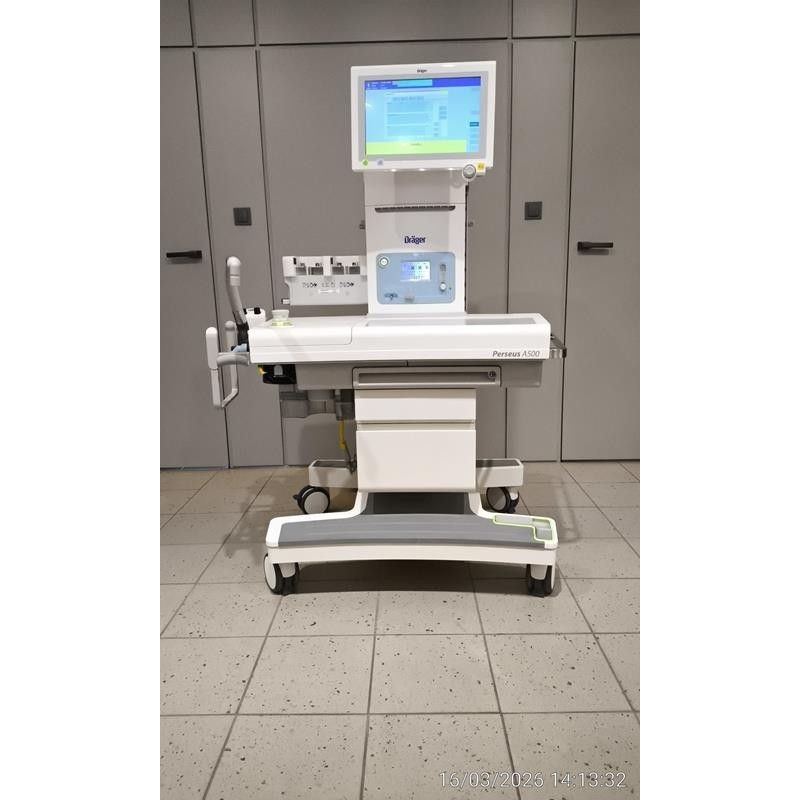

Drager Perseus

Anesthesia machine
Dimensions (H × W × D): 148 × 115 × 79 cm
Weight: approx. 150–160 kg
Power supply: 100–240 V AC, 50/60 Hz
Power consumption: approx. 70 W typical, max. 2.2 kW
Battery backup: 30–150 minutes
Interfaces: 2× RS232, USB, LAN

Gas system
Gases: O₂, AIR, optional N₂O
Electronic gas mixer
Fresh gas flow: 0.2 – 15 L/min
O₂ concentration:
21–100% (Air)
25–100% (N₂O)
O₂ flush: 25 – 75 L/min
Auxiliary O₂ flow: 2 – 10 L/min

Ventilator (TurboVent2)
Type: blower-driven, electronically controlled
ICU-level ventilation

Ventilation modes:
MAN/SPON
CPAP
VC, VC + PS
PC, PC + PS
Pressure Support
AutoFlow
APRV

Ventilation parameters:
Tidal volume: 20 – 2000 mL
Respiratory rate: 3 – 100 bpm
Inspiratory pressure: 3 – 80 mbar
PEEP / PS: up to ~78 mbar
Inspiratory flow: up to 180 L/min

Monitoring & features
Gas monitoring: O₂, N₂O, CO₂, anesthetic agents
15.3” touchscreen display
Breathing loops
Low-flow & minimal-flow tools
Automatic self-test
RFID system
Integration with patient monitoring systems
