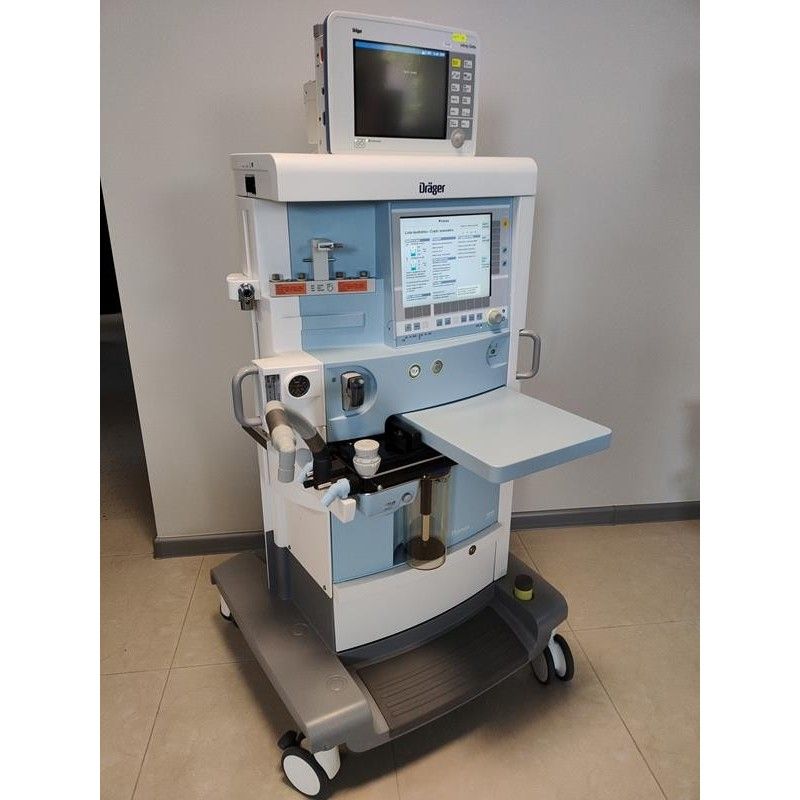

Drager Primus Infinity Empowered Anesthesia Machine

Ventilation System:
E-Vent plus piston ventilator – electrically driven, providing precise ventilation for
adults, children, and neonates.

Ventilation modes – include volume-controlled ventilation (VC), synchronized VC with
pressure support (VC+PS), pressure-controlled ventilation (PC), synchronized PC with
pressure support (PC+PS), Pressure Support, and AutoFlow.

Tidal volume (VT): from 5 to 1400 ml, adaptable to different patient categories.
Respiratory rate: adjustable from 3 to 100 breaths per minute.

Breathing System:
Heated breathing system – minimizes condensation and
supports low-flow anesthesia techniques.

Econometer – facilitates optimal fresh gas flow settings and detects gas deficits.

Monitoring:
Integrated gas measurement module – enables monitoring of inspiratory and
expiratory concentrations of O₂, N₂O, CO₂, and inhalation anesthetics.

Large 12.1-inch color LCD TFT display – allows monitoring of lung functions and
ventilation parameters with user-configurable options.

Safety and Power Supply:
Integrated emergency power supply – ensures operation for 30 to 90 minutes in case of
a power failure.

Infinity ID accessory identification system – uses RFID technology to track and
manage accessories, enhancing safety and efficiency.

Dimensions and Weight:
Dimensions: 138 cm (height) x 80 cm (width) x 80 cm (depth).
Weight: 147 kg.

The Dräger Primus Infinity Empowered is designed to enhance the efficiency of
medical staff and ensure the highest level of patient care.
