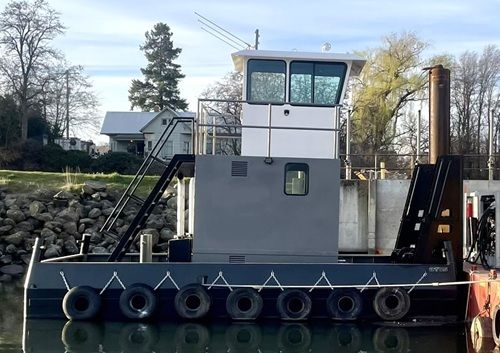

DREDGE TENDER 25′ x 14′ Hull Bottom Thickness: 1/4 in

Type: Workboat
Hull Material: Steel
Length: 25 ft
Width: 14 ft
Deck Thickness: 1/4 in
Side Thickness: 1/4 in
Internal Construction Members: 1/4 in
Structural Channel Keel Coolers: 6 x 8.2, 160 linear feet each engine, pressure tested
Mooring Cleats Double as Pick Points
Zinc Anodes
Bulwark with Tire Hangers: 18 in
Structural Steel Channel Push Knees with Reinforced Plating and Rubber Bumper
Steel Plate Rub Rail: 1/2 in x 5 in
Extra Heavy Structurally Reinforced Tow Bit Front and Back
Engine Model: QSB 6.7 305MDI
Engine Power: 305 HP @ 2600 RPM
Peak Torque: 866 Ft-lb @ 1700 RPM
Rating Type: MD Rating
Certification Level: IMO Tier II, EPA Tier 3
Starting System: Denso / PA90S – 12V
Charging System: Prestolite MDA – 12V / 80A
Fuel Filter: 5 Micron, single spin-on
Fuel Water Separator: Single Racor 900MA with WIF sensor and harness
Flywheel Housing: SAE 3 DryQSB 6.7 305MDI
Fresh Air Intake
Marine Gearbox: Twin Disk MG-5075SC
Gearbox Ratio: 2.88:1
Centa CF-R-178 Torsional Coupling
Electric Shift Solenoid
SAE “A” Pad Live PTO
Steel Mounting Brackets with Hardware
Prop Flange with Hardware
Propellers: 34 in diameter x 17 in pitch, four-blade bronze
Prop Shafts: 2.5 in Aquamet 17 stainless steel
Main Rudder Pivot Angle: 45°
Main Rudder Shafts: 2.25 in 1045 carbon steel
Main Rudder Stock: 5/8 in A36 plate
Main Rudder Bearings & Bushings: Tides Marine
Hydraulic Steering: Electro-hydraulic, 12 VDC, PTO-driven pumps
Steering Reservoir: 50 gallons, 36 in x 24 in x 17 in
Hydraulic Pumps: 2 Vickers, SAE A pad, integral flow & relief valves, outfitted with gauges & isolators
Check Valves: 2
Directional Control Valves: 2, 12 VDC, with subplate
Skipper Non-Follow-Up Lever: 2
Telcor Feedback Unit w/ Linkage: 2
Telcor Master RAI 12 VDC (Rudder Angle Indicator): 2
Cylinders: 4 Skipper 3 x 18 in, 1 in 17-4PH stainless pins each end
Hydraulic Hoses and Adapters for Valve & Cylinders
Shut-Off Valve on Each Pump
Fuel Tank Capacity: 525 gallons
Pilot House Dimensions: 5 ft W x 5 ft 6 in L x 7 ft T
Pilot House Windows: 2 sliding front side, 1 top hinge front center, 8-9 TTL windows
Dash Mounted Switch Panels
Marine Navigation Lights: Red, Green, White, Yellow if requested
Removable Pilot House for Trucking
Lockable Door
Eye Height off Waterline: 16 ft
Truck Cabin Dimensions: 9 ft W x 9 ft L x 6 ft T
Truck Cabin Upper Hand Rail: 36 in
Truck Cabin Deck: Painted with Anti-Slip Material
Truck Cabin Windows: 3
Truck Cabin Vents: 2
Truck Cabin Lockable Door
Hull Finish: Sand blasted (near white metal)
Main Hull Coating: 2 coats Marine Epoxy
Deck Coating: 2 coats Marine Epoxy with Anti-Slip
Trunk and Cab Coating: 1 coat Marine Epoxy Primer + 1 coat Urethane Topcoat, secondary colors optional
