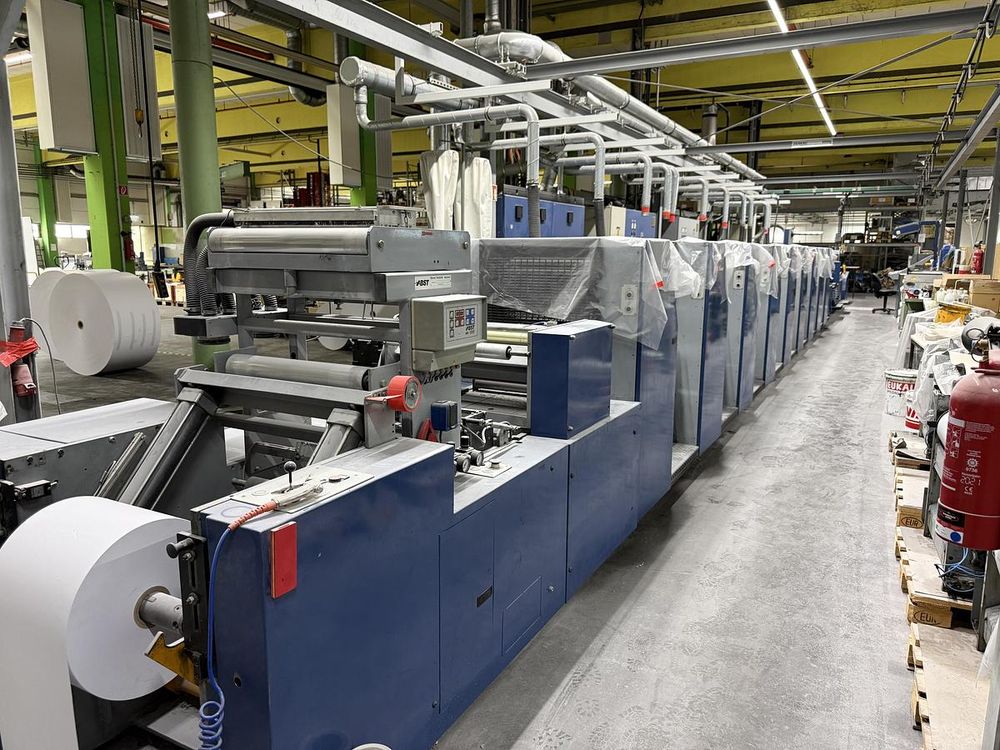

Drent Gazelle S 316 9

1 x paper unwinding for max. 120 cm roll diameter
Max. Paper width: 500 mm
Max. Druckbreite: 480 mm
Nominal body diameter: 70 mm
Paper weights: 40 - 150 g/m²

2 x compressed air expansion axes for 70 mm collet diameter of the roll-off
1 x compressed air expansion axis for 70 mm sleeve diameter of the winding
1 x rail edge control unit with remote adjustment
9 x damp offset printing presses with alcohol dampening units in 16 2/3", 24" and 25"
Pressure variants: 9/0, 8/1, 7/2, 6/3, and 5/4-color
It is produced in the straight track run with end dryer.
4 turning crosses in the press section 1-4
9 x wet offset die inserts 25" cylinder circumference
UV drying 1x2 final dryer + 1x3 final dryer variably usable
GKW color roller tempering per printing unit

TOOL GROUP:
1 x preferred arrangement
1 x punch for punching holes
1 x binding hole punchout 25 inch with 2 sets of tools for head- and side-binding hole punching at 4 / 6 / 8 and 12 inch

Remaliner Punching Station trimming device Scheerschnitt with 2 pairs of knives
Longitudinal perforation with pneumatic knife holders
Cross-cutting cylinder circumference 16 2/3 inches
Quasi perforation cylinder circumference 25 inches
Stamping unit GAP Master 25 inch magnetic cylinder
Gap width 0.48 mm

Rewinding for 1200 mm roll diameter
BST Web Video Camera for rail monitoring Front side and back side
Max. running speed: 250 m/min roll/single sheet; 250 m/min roll/roll
Max. production speed: 250 m/min roll/single sheet; 250 m/min roll/roll

CHANGE ASSEMBLY:
24 inches
9 x wet offset pressure insertion 24 inch cylinder circumference
1 x magnetic stamping unit GAP Master 24 inch, gap 0.48 mm
1 x cross-cutting cylinder 16 2/3 inch circumference with 7.8 mm cutout
1 x deburr hole punch 20 inches with 1 pair of tools for deburring holes 6 2/3 inches
9 x wet offset pressure insert 16 2/3 inch

GAZELLE SINGLE BLADE DISC
DIN format display:
DIN A3 / DIN A4 / DIN A5 with perforation cut via shear cylinder
A cutout is also possible. Thus formats such as A4 and A5 are also possible

inch formats projection:
24 inches, 12 inches, 8 inches
25 inches, 12.5 inches, 8.333 inches

Max. width for single-leaf outward extension: 480 mm
Max. speed single-leaf extension: 150 m/min
Max. grammage: 120g/m²
