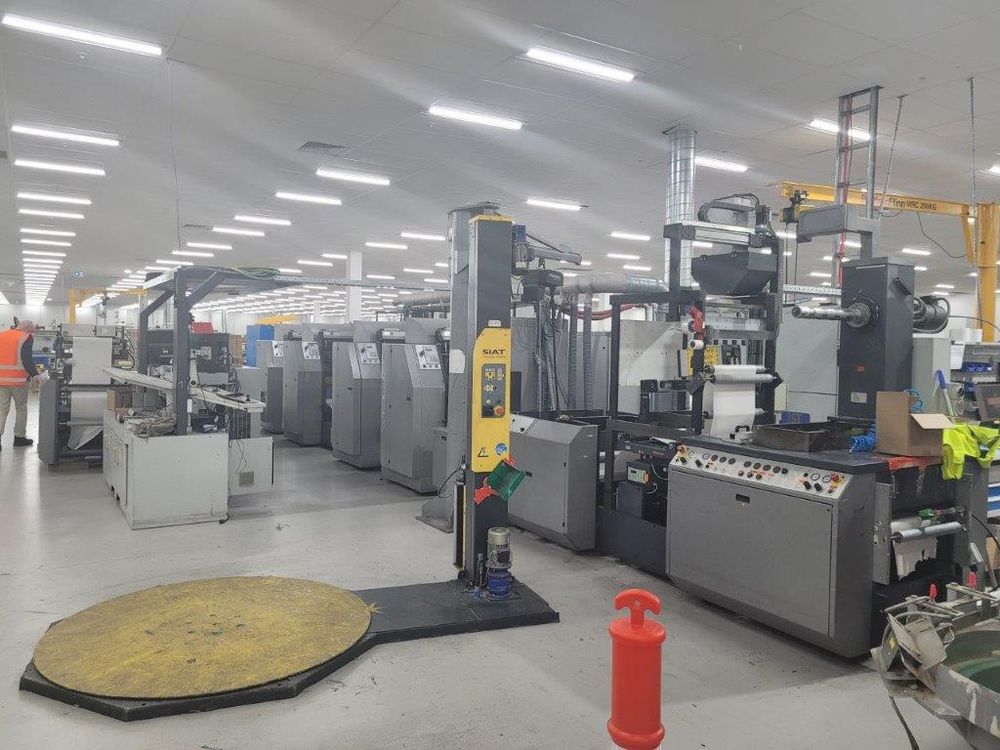

Drent VSOP 4 520 mm

Variable sleeve Offset printing,Label printing
Flexible packaging printing,Folding carton printing,
Commercial printing
Web Width: 520 mm
4 COLOUR
ONLY 3 units working
Unwinder
Infeed + web guide + web cleaner double
IST UV driers between unit 2 & 3 and after unit 4.
Corona treater, screen printing,cooling UV Curing,web guide, register system, flexo unit, hot air dryer, servo drive
Mag cylinder crane,technotrans alpha D.,turn bar,chilled rollers, rotary diecutting unit,
auto dosing fountain concentrate & alcohol,with Errepi Leonardo 530 Turret with bowl feeder,2013.
Camera system.
Normal plates with thickness of 0.3mm are used.
With Manuals.
Lots of tooling.

Plus additional accessories - 1)KTI MODEL: MR 2424-05

FEATURES:5 spindle configurations.
Automatic transfer to new core at programmed linear count or roll diameter.
Integrated festoon allows cutting and transferring at zero speed to handle lighter materials, film and perforated products.

SPECIFICATIONS:
Web width: up to 24 inch (609 mm)
Roll diameter: up to 24 inch (609 mm)
Roll weight: up to 250 lbs (113 kg)
Transfer speed: up to 750 FPM (228 MPM)
Core size: 3 inch (76 mm)
Materials: paper, laminates, PS labels , film.
