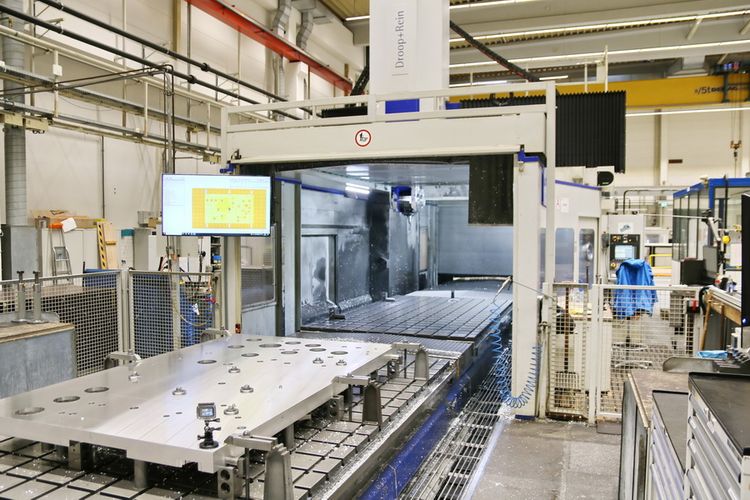

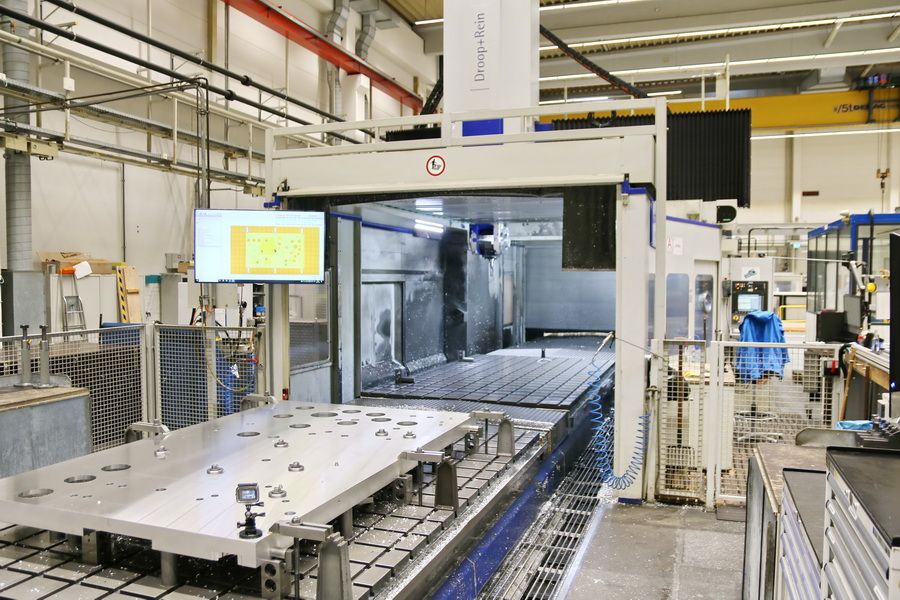

Droop & Rein TFS 22 40 DT D40 P 18,000 RPM

X-Axis Travel: 397.6" (2 × 196.9")
Y-Axis Travel: 118.1"
Z-Axis Travel: 59.1"
B-Axis: +110°/-10°
C-Axis: ±200°

Feed Rate X-Axis: 1,181 IPM
Feed Rate Y/Z-Axis: 1,575 IPM
Feed Rate B-Axis: 3,600°/min
Feed Rate C-Axis: 2,160°/min

Siemens Sinumerik 840D CNC Control
327-Position Automatic Tool Changer
Dual Chip Conveyors
Through-Spindle Coolant
Coolant System
Dual Pallet Configuration
Dual Work Tables
B-Axis Swiveling Head
C-Axis Rotary Table

m&h RWP 20.10 Workpiece Probe
Renishaw Tool Breakage System
Renishaw Tool Measurement System
Spindle Speed: 18,000 RPM
Spindle Power: 26.8 HP
Spindle Torque: 35.4 ft-lb
Spindle Taper: HSK-A63
Spindle Extension: 17.7"

Heavy-Duty Spindle Speed: 20–5,000 RPM
Heavy-Duty Spindle Power: 53.6 HP
Heavy-Duty Spindle Torque: 811 ft-lb
Heavy-Duty Spindle Taper: HSK-A100
Heavy-Duty Spindle Extension: 11.8"
Table Size: 157.5" × 86.6" (2 Tables)
Maximum Table Load: 26,455 lb / 44,092 lb

Table Height: 27.6"
T-Slots: 11 + 19
T-Slot Width: 1.10"
T-Slot Spacing: 7.87"
Distance Between Columns: 118.1"
Passage Height: 76.8"
Spindle Center to Table: 70.9"
Spindle Nose to Table: 53.1"/59.1"
Machine Dimensions: 984.3" × 472.4" × 275.6"
