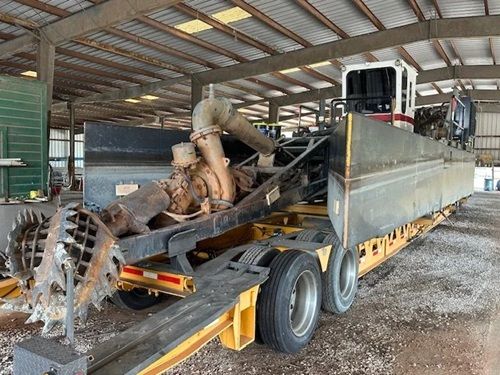

DSC DSC Moray Total Dredge Package 8×8 Swinging Ladder or Conventional Dredge

Engine hours: 8,000
Booster Pump: 8×8
Engine: CAT 3306 300 hp
Dredge pump: Metso 8×8 H24HD
PTO: Twin Disc
Tug: 88 hp single crew, truckable
8” SDR 17 pipe length: 1,820′
8” Neptune Pipe Floats: 34
10” SDR 17 pipe length: 3,000′
10” Neptune Pipe Floats: 22
Dredge pipe safety lights: 40
Dredge length: 42′-10″
Transportation width: 11′-11″
Operating width: 18′-6″
Hull depth: 4′
Mean operating depth: 2′-9″
Fuel capacity: 500 gallons
Dry weight: 43,500 lbs
Minimum digging depth: 3′
Maximum digging depth: 16′
Swing width minimum digging depth: 19′-4″
Swing width maximum digging depth: 13′
Normal pump capacity: 200 gpm @ 185 tdh
Engine make: Caterpillar
Engine model: C-7
Max HP @2200 RPM: 275 hp
Cooling: Radiator
Silencer: Residential grade, EPA & CARB Tier III compliant
Cutter drive: Sealed planetary drive with alloy cutter shaft and anti-friction bearings
Cutter diameter: 24″ inside diameter, 5 blade basket with replaceable cast serrated edges
Cutter torque: 35,512 in-lb
Cutter force: 2,626 lb
Cutter speed: 0-40 rpm
Cutter power: 20 hp
Swing cylinder type: Double acting hydraulic
Swing cylinder model: Z40015136CCAZ
Swing cylinder extending force: 27,600 lb
Swing cylinder extending speed: 12 ft/min
Swing cylinder retracting force: 16,800 lb
Swing cylinder retracting speed: 20 ft/min
Ladder hoist cylinder type: Double acting hydraulic
Ladder hoist cylinder model: Z44034332CCAZ
Ladder hoist extending force: 15,900 lb
Ladder hoist retracting force: 28,000 lb
Stern spud kicker cylinder type: Double acting hydraulic
Stern spud kicker cylinder model: #S40006032SS
Stern spud extending force: 21,740 lb
Stern spud retracting force: 21,740 lb
Stern spud advance at minimum depth: 2′
Stern spud advance at maximum depth: 4′-4″
Dredge suction diameter: 8″
Dredge discharge diameter: 8″
Impeller diameter: 19-1/2″
Maximum particle clearance: 3-1/2″
Spud hoist winches manufacturer: DSC
Spud hoist winches model: RMLF043/HD-00089
Spud hoist line pull: 2,100 lbs
Spud hoist line speed: 78 ft/min
Spud hoist wire size: 3/8″ x 6″ x 37
Spud hoist drum capacity: 45 ft top, 35 ft bottom
Hydraulic capacity: 180 gallons
