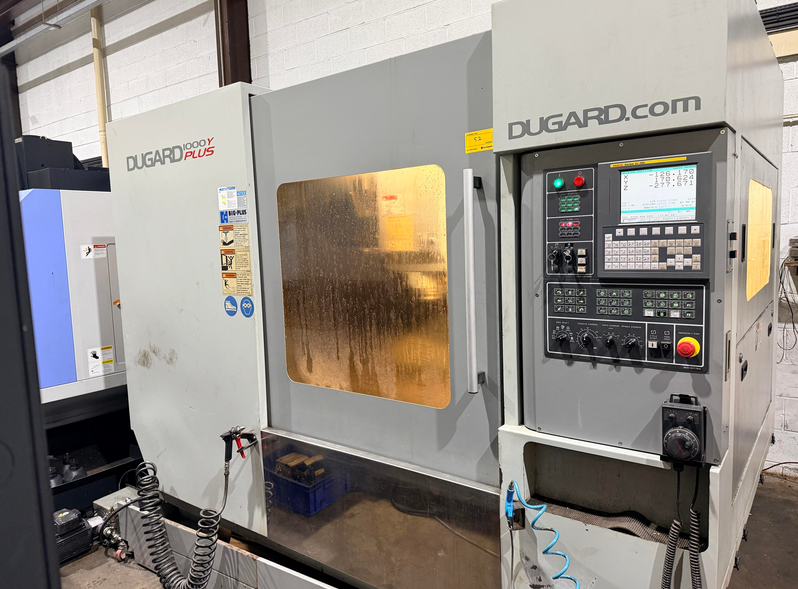

Dugard 1000Y PLUS 3 Axis

Coolant
Interlocked guards
Low volt light
Through-spindle coolant

Technical Data
Traverses XYZ: 1020 x 610 x 510 mm
Rapid feedrates XYZ: 30 x 30 x 24 m/min
Control: FANUC 0i-MD
Maximum cutting feedrate: 10 m/min
Spindle speed: 10000 rpm
Maximum tool diameter: 76 mm
Maximum tool length: 250 mm
Maximum tool weight: 7 kg
Tool change capacity: 24 station
Tool change time (chip to chip): 1.5 seconds
Tool size: BT40 BIG PLUS
Table size: 1200 x 600 mm
T-slots: 5 x 18 mm (100 mm centres)
Min–max height under spindle: 130–640 mm
Maximum workpiece weight: 500 kg
Spindle centre to column: 585 mm
Machine dimensions: 2800 x 2080 x 2583 mm
Machine weight: 6700 kg
