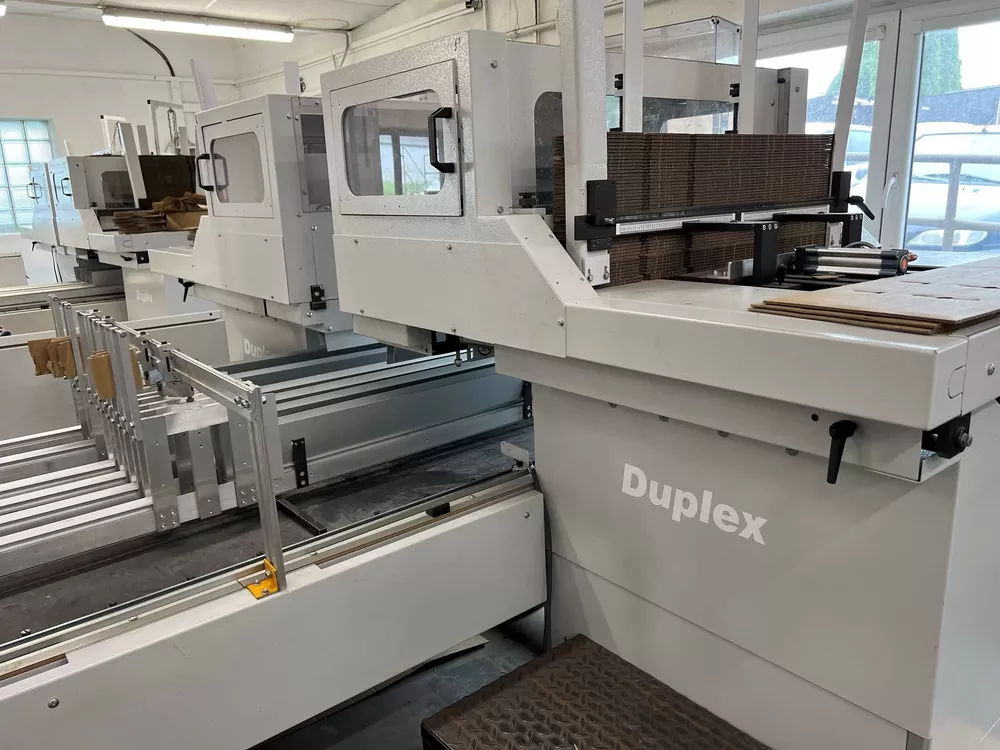

Duplex Wide Corrugation Folding Machine with Feeder

Andax Wide Corrugation Folding Machine with Duplex Feeder
Folds corrugated cardboard from all types of corrugated cardboard, from E-board to double flute;
• High efficiency, with a production rate of up to 50 corrugated cardboard sets per minute (depending on the corrugated cardboard size);
• The S7 PLC system allows for the storage of extensive parameter series on the hard drive, significantly simplifying and reducing the time required for format changeovers;
• Fully automated operation with the following equipment:
– Duplex feeder for automatic insertion of long dividers into the machine. Technical Details
• Number of longitudinal elements: 6 + 2 additional with manual feeding
• Number of cross-member spacers: 24
• Max. dimensions of long partitions: 850 mm in the automatic version (* possibility of manually feeding truss elements with a maximum length of 1200 mm)
• Max. dimensions of cross-members: 850 mm (in the automatic version)
• Max. truss height: 400 mm
• Min. truss height: 65 mm
