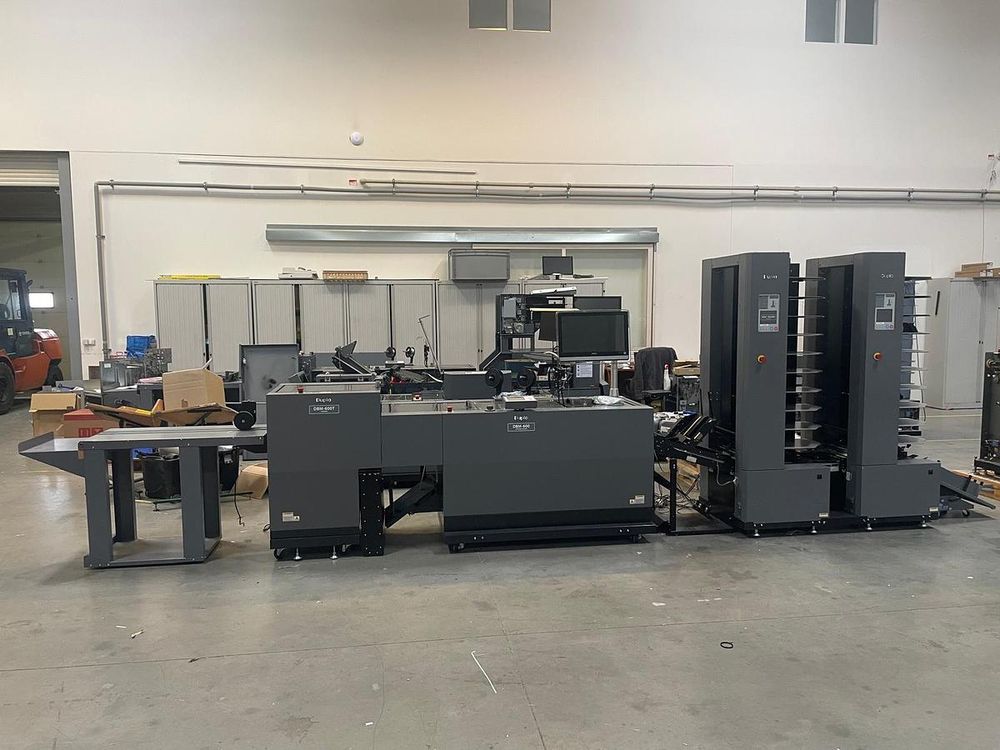

Duplo 600i Automatic stitching line

Condition: perfect
Counter condition: only 1.5 M

Configuration:
2 x Tower DSC 10/60
1 x stitching and folding unit DBM 600
1 x front trimmer DBM 600T
1 x long delivery
1 x jogger

Technical Specification - Duplo DSC 10/60:
(gathering towers)
Paper Size and Media
Minimum size: approx. 120 × 148 mm
Maximum size: approx. 350 × 500 mm
(up to 350 × 610 mm for some versions)
Paper weight:
standard: approx. 52–300 g/m²
coated paper: approx. 79–300 g/m²
Media types: loose sheets, folded sheets, cross-folded sheets

Capacity and Performance :
Bin capacity: approx. 60–65 mm per station
Collating speed: up to 9,000–10,000 sets/hour (depending on configuration)
Inline production speed: approx. 4,000–5,000 booklets/hour

Feeding and Transport System:
vacuum belt feeding with air separation (Air Management System)
Error detection: double sheet detection, missing sheet detection, paper jam detection
Additional features: automatic calibration for different paper types

Technical Specification - Duplo DBM-600 / DBM-600T :
(Stitching & Folding Unit – 600i Booklet System)
Paper Size and Media
Sheet size (min.): approx. 105 × 170 mm
Sheet size (max.): approx. 356 × 508 mm
(up to 230 × 610 mm for long sheets)
Supported formats:
A4, A3, B4, B5, Letter, Legal (various orientations)

Capacity and Performance :
Production speed: up to 5,200 booklets/hour
2-up production speed: up to 9,000 booklets/hour (with trimmer)
Folding capacity: up to 30 sheets (80 gsm)
Stitching capacity: up to 50 sheets (80 gsm)
(approx. 5 mm thickness, depending on paper)
Maximum booklet thickness: approx. 6 mm (≈120 pages)

Stitching System :
Number of heads: 2 standard (optional 4 stitching heads – not included)
Stitch types: saddle stitching, side stitching, corner stitching
stitch & fold / fold only
Stitch head type: Hohner 43/6S
Stitch distance (1-up): approx. 60–320 mm

Booklet Formats :
Finished booklet size (1-up):
max: approx. 350 × 254 mm
min: approx. 120 × 75 mm
Untrimmed booklet size:
max: approx. 356 × 254 mm

Trimming Unit - Duplo DBM-600T :
Face trimming (standard):
adjustable trim range
head & foot trimming
2-up processing capability
trim range: approx. 2–60 mm

Folding System :
Type: automatic roller folding system
Adjustment: fine tuning from approx. 0.1 mm

Control and Automation :
Control system: PC-controlled interface
graphical user interface (GUI)
Automation features: fully automatic setup, job memory and recall
quick changeover between jobs

Electrical and Physical Data :
Power supply: 220–240 V, 50/60 Hz
Power consumption:
DBM-600: approx. 465 W
DBM-600T: approx. 645 W
Dimensions (DBM-600): approx. 1848 × 929 × 1227 mm
Weight (DBM-600): approx. 377 kg
