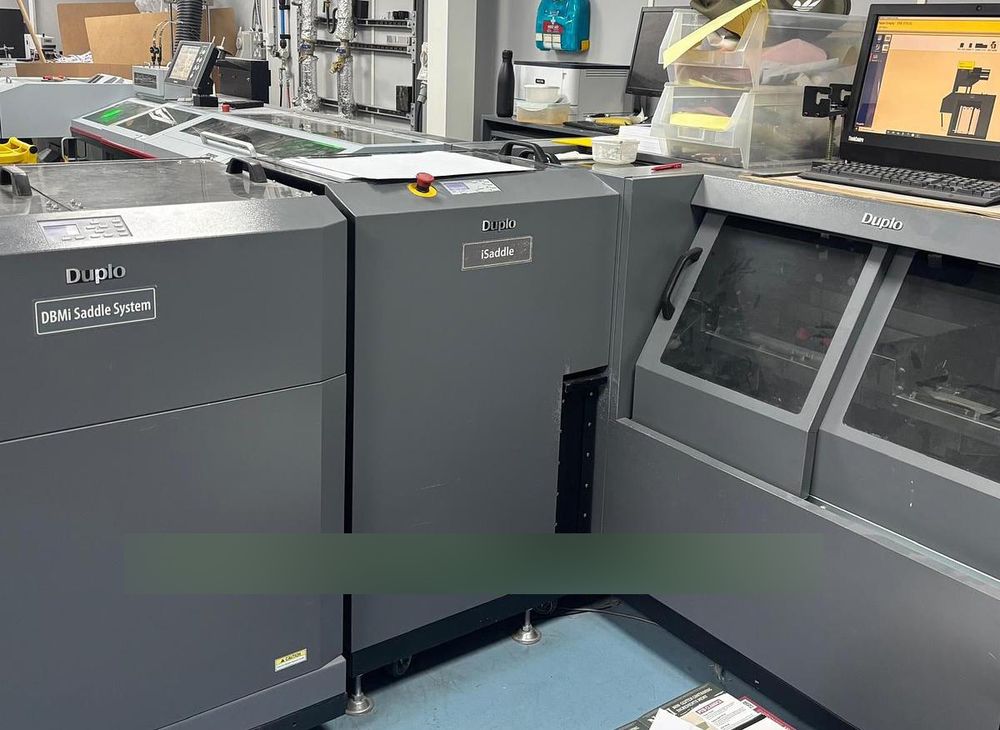

Duplo DBMi

Saddle System with DSF-CFL Sheet Feeder & Cover Feeder
Condition Used
Paper type Fine quality paper 64 to 157gsm
Art/Coated paper 84.9 to 157gsm
Cover sheet 300 gsm
Paper size Saddle stitching/Length 210 to 610 mm Width 120 to 356 mm
Type of stitching Saddle Stitch
Maximum booklet thickness 6.0mm (1 Cover sheet + 29 inner sheets)
Maximum processing speed A4 size, within 10 sheets 5,050sets/h A3 size, within 10 sheets 4,000sets/h
Thickness of Scoring/Folding 1.0mm (DBMS-S5 stack sub-sets on the buffer section)
Trimming Width 1 to 25mm
Number of stitch 0 to 2 ( 3 or 4 stitch is available by optional equipment)
Detecting function 【DBMS-F5】 Paper jam, Cover open/close, Motor overload detection
Detecting Function【DBMS-S5】 Paper jam, No stitch detection, Stitcher dislocation detection, Cover open/close, Motor overload detection
Detecting Function 【DBMS-T5】 Paper jam, Cover open/close, Knife stop position error, Motor overload detection
Rating and power consumption 【DBMS-S5】 200 to 240V, 50/60Hz, 3.0A, 510W
Rating and power consumption【DBMS-T5】 200 to 240V, 50/60Hz, 2.5A, 355W
