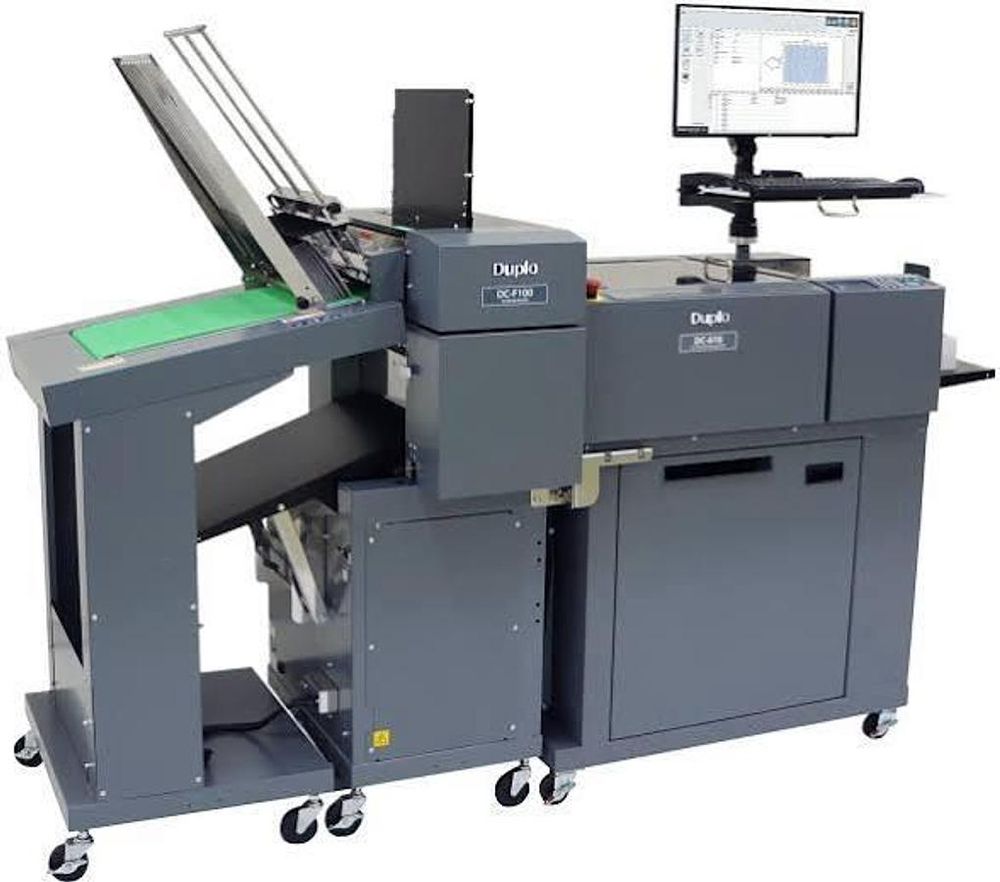

Duplo DC-618 with DC In-Line Folder

Duplo DC-618 with DC In-Line Folder
Condition Used
Speed Up to 23 sheets per minute (8.5"x 11" 2 cuts,1 crease and CCD scanner off)
Input Paper Size 8.26” x 8.26” to 13” x 39.3”
Min. Finished Size 1.89” x 1.97”
Tolerance ± 0.3 mm business cards; ± 0.2 mm on programmed position
Feeder Capacity 3.9”
Paper Weight 110 - 400 gsm
Slits Up to 6 per sheet
Cuts Up to 30 per sheet
Creases Up to 20 per sheet
Memory 250 jobs using the control panel
Standard Features:
Air knife, side air kit, card stacker, fan registration, automatic gutter slit deflectors, crease depth and width adjustment
Ultrasonic double feed detection sensor, feed skew adjustment, batch separation
Waste box, emergency stop switch
CCD scanner, PC Controller software, PC pole mount, long paper tray, LCD color touchscreen panel
Electrical 115V: 2.3A, 60Hz
Dimensions 67"W x 32"D x 44"H
Weight 375 lbs.

DC In-Line Folder Specifications:
Paper Types:Uncoated, Coated, Laminated-Paper+Film must be within specifications listed
In-Line Paper Weight 110 - 400 gsm (Double Parallel: 110-230 gsm) *Laminated/UV Coated stock: maximum 400 gsm
Input Length No Fold: 1.96” -39.37” 1-Fold: 5" - 39.37" 2-Fold: 6.69”-39.37” Double Parallel: 8.36”-39.37”
Input Width Minimum: 1.88” Maximum: Follows the specifications of the DC Model connected
Finished Length No Fold: 1.96”-39.37” Folded: 3.34”-19.68”
Stacker:
Upper Conveyor Stacker: non-fold cards and folded cards
Lower Conveyor Stacker: non-fold cards only
The DC-618 Card Stacker ONLY can be used on the lower stacker of the DC-F100

Upper Stacker Card Length 1.96”-39.37”
Upper Stacker Capacity 15.75”
Lower Stacker Capacity 3.93"
DC-Folder Electrical 100-240V 50/60Hz, 4.9A
DC Folder Dimensions 51.37”W x 31.29”D x 64.37”H
DC-Folder Weight 331 lbs.
