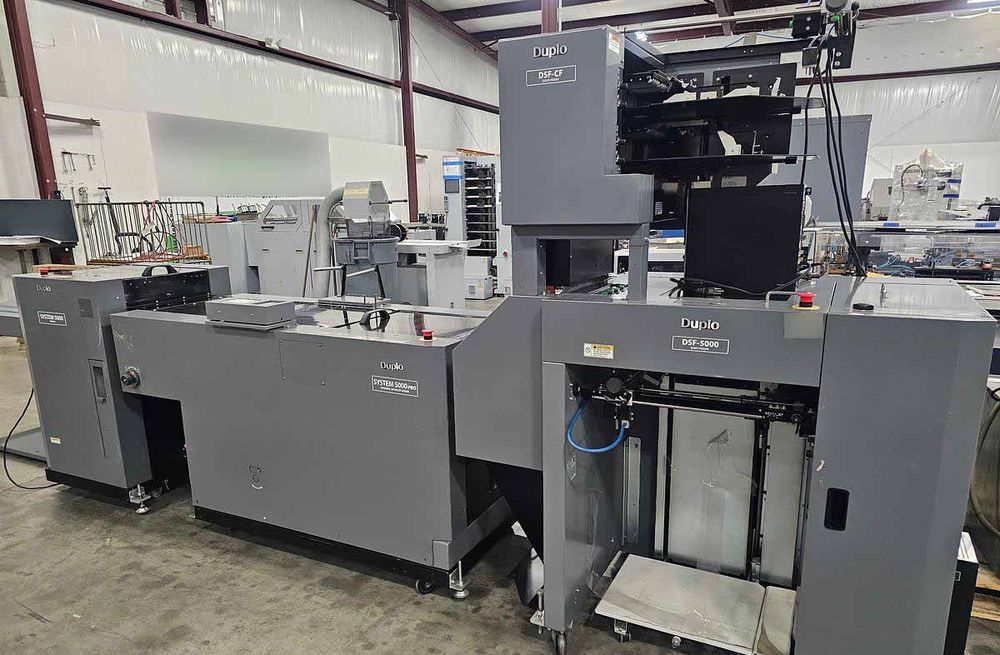

Duplo DSF-5000 Pro

Condition Used
Feeding System Belt suction feed system using a fan and pump; Elevator feeder system
Maximum Paper Loading Capacity 24.02” maximum stack height
Paper Size:
Max.: length: 20.5"
Min.: length: 8.5"
Max. Width:14.25”
Min. Width: 4.75"

Paper Type Art/coated paper, laminated paper: 84.9 to 300 gsm, fi ne paper: 64 to 300 gsm
Buffer Capacity 10 sheets depending on paper type
Processing Speed Maximum 400 sheets per minute (A4 SEF) at transportation speed of 2,800 mm per second
Processing Speed Exceptions:
Exception when using end mark and barcode detection function
When continuously feeding without intervals between sets; Varies upon paper type

Conveyance Speed Paper type which can be conveyed at 2,800 mm per second: fi ne quality paper above 80 gsm coated paper above 100 gsm
Control Panel Liquid crystal display unit with a jog dial (attached to the main unit), controls are through PC
Additional Functions Hand feed (sheet and set); end mark detection (CCD sensor); anti-static bar (SIMCO)
Dimensions 54” W x 46” D x 32” H main unit only; 60” W x 46” D x 32” H with ejection guide and IF/Box
Power Source AC 100 - 240V, 50/60Hz
Power Consumption 3 - 1.5A 300W
Weight 638 lbs.
Power Source (I/F Box) AC 100 - 240V, 50/60H
