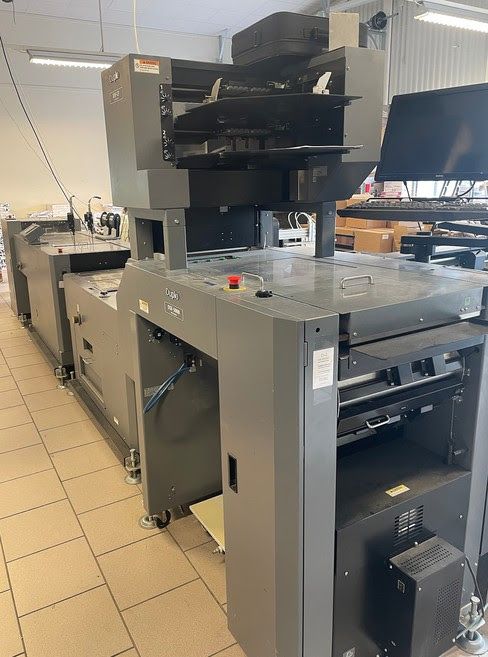

Duplo DSF-5000 PRO
EUROPE (Western and Northern)
High Speed With Control For Finishing Booklets From Digital Print Open Workflow Integration
Up to 4,000 booklets per hour
Production with integrity
Brochures, manuals, personalised documents, pension & Financial investment reports, price lists, leaflets PC control software
Includes:
*SYSTEM DBM 5000 inline Booklet Maker
*DSF-5000 Digital Sheet Feeder:
Feeding System: Belt suction, top feed from the pallet on the elevator, and air separation from the fan and pump on three sides.
Capacity: 610 mm media stack height
Paper sizes: Length: 500 to 210 mm / Width: 356 to 120 mm
Paper weight: 64 to 300 gsm
User features:
PC Windows-based graphical user interface.
Job programming, save and recall, automated set-up.
Job audit logging when used with barcode control.
Standard features:
Rolling pallet paper tray OMR end of set mark reader
Optical and ultrasonic sheet detection.
Active anti-static control.
Hand feed tray
Weight: 297 Kg
*DSF-CF Cover Feeder: T
wo feed trays, belt suction, top feed with air separation
Capacity: 2 x 60 mm media stack height
Paper sizes/weight: Same as DSF-5000
Power: 24 VDC from DSF-5000
Weight: 65 Kg
*Duplo Slitter, cutter and creaser SCC
*SYSTEM 5000 Knife Trimmer
*SYSTEM 5000 Trimmer
Good working order
Available immediately
