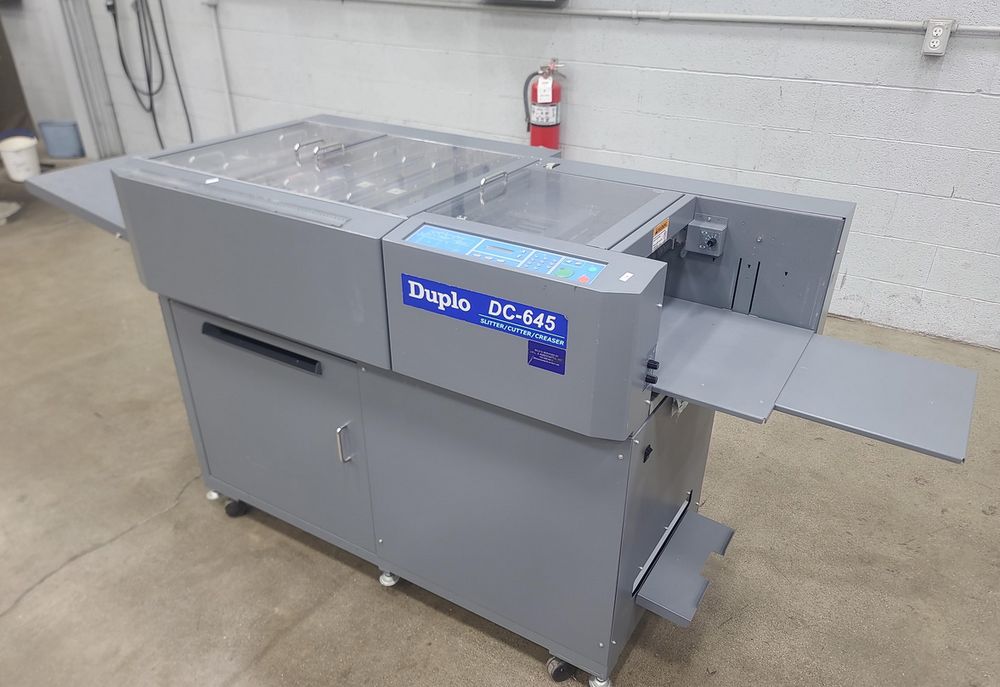

Duplo SCC-645 370 mm × 650 mm

Slitter / Cutter / Creaser
Features:
All-in-one slitting, cutting, and creasing system
Automatic feeder with air-assisted sheet separation
Barcode reader for automatic job setup
Image shift compensation for digital print registration
Programmable job memory and computer interface

Typical Applications :
Business card production
Brochure and flyer finishing
Greeting cards and invitations
Commercial digital print finishing

Technical Specifications :
Processing Speed: Up to 26 sheets per minute (approx. 1,560 sheets per hour)
Maximum Sheet Size: 14.56 in × 25.59 in (370 mm × 650 mm)
Minimum Sheet Size: 8.26 in × 8.26 in (210 mm × 210 mm)
Paper Weight Range: 110 – 350 gsm
Maximum Operations per Pass: Up to 6 slits, 15 cuts, and 10 creases
Feed Tray Capacity: Approx. 3.9 in (100 mm) stack height
Program Memory: Up to 80 stored jobs
Power Requirements: 120V, 50/60 Hz
Machine Dimensions: Approx. 90 in L × 30 in W × 45 in H
Machine Weight: Approx. 360 kg
