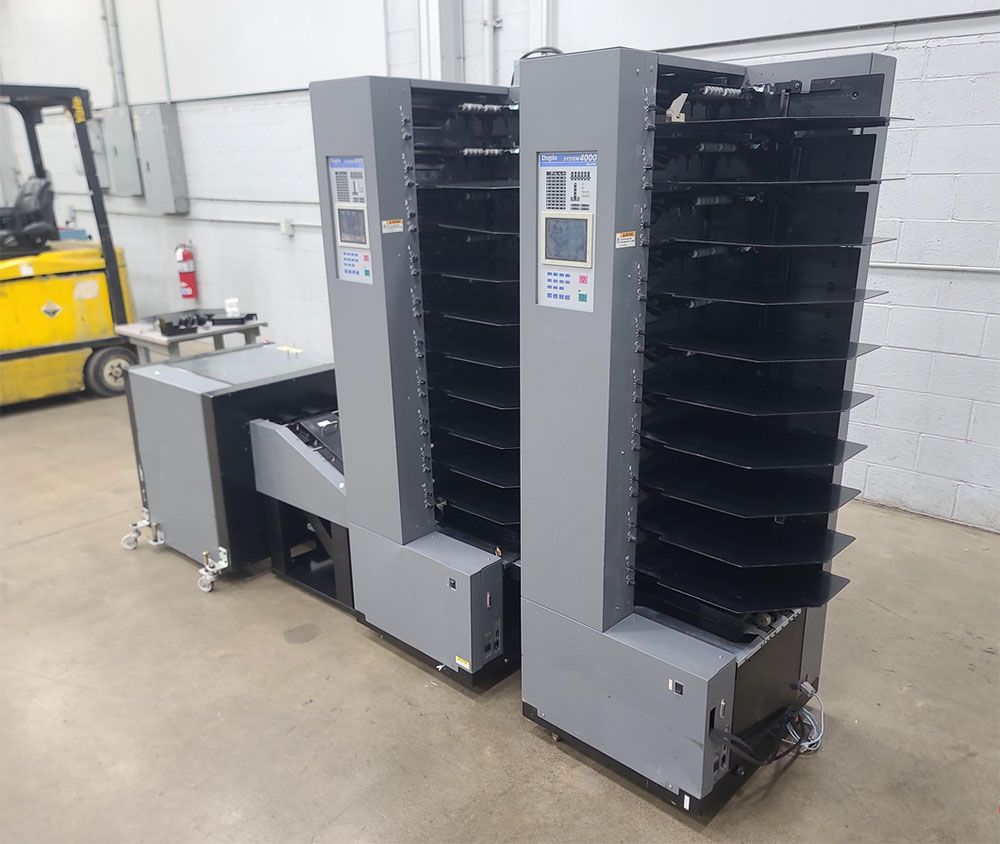

Duplo System 4000

Collating System w/ Connecting Bridge and Stacker
Features:
20-bin vacuum-feed collating system
Integrated booklet maker, face trimmer, and precision stacker
Produces saddle-stitched, corner-stitched, side-stitched, or folded-only booklets
Vertical, modular design for space-efficient installation
Handles a wide variety of paper types, sizes, and weights
Up to four stitcher heads (two standard Hohner heads)
Automatic stitcher head, guide, jogger, and stopper positioning
Jam and misfeed detection for consistent operation
Programmable memory for repeat jobs

Specifications:
Speed: Up to 4,200 booklets/hour or 10,000 collated sets/hour
Programmable Memory Settings: 8
Detection: Jam and misfeed
Stitcher Heads: 1–4 (2 standard)
Stitch Positions: Saddle, corner, side, or fold-only
Sheet Size (Min/Max): 4.73″ x 5.51″ to 13.82″ x 14.41″
Paper Capacity: Up to 30 sheets
Sheet Size (Min/Max): 4.5″ x 6.6″ to 14″ x 20″
Paper Capacity: Up to 25 sheets
Dimensions: 36″ H x 27″ W x 57″ L
Weight: 640 lbs
Electric: 120V, 60Hz, 9.5A
