Schmid Duplomat 86 N Quilting Machine

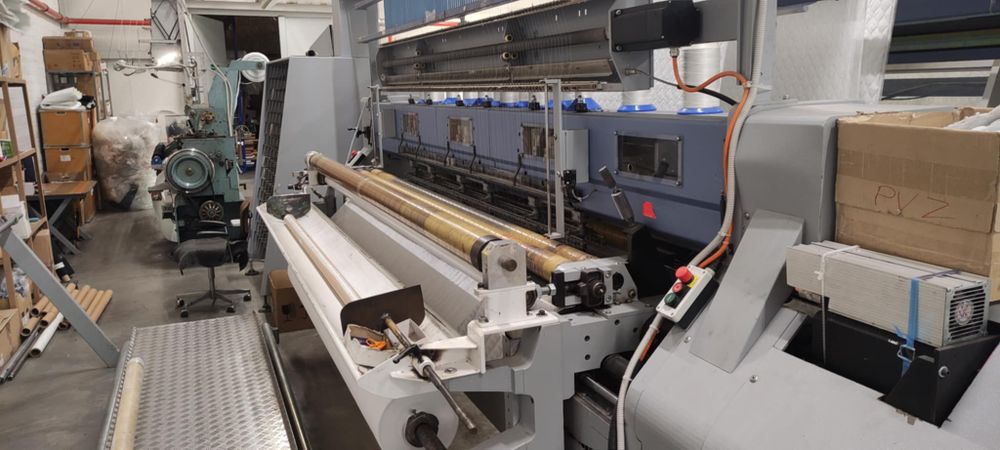

1 x Duplomat 86 N Eltron III multi-needle quilting machine:
Year 2005
- Manufacturer: PERFECTA SCHMID, Switzerland
- 3x380V, power - 10kW,
- Required compressed air – 5-7 bar,
- Quilting fabric width - 220cm ± depending on the quilting pattern/design,
- Quilting speed – from 250m to 600m per shift depending on the design,
- Adjustable presser foot for the quilted fabric depending on the weight of the quilt batting or foam,
- The machine has 2 needle bars, with a distance of 3'' or 7.62cm between them,
- Distance between needles on the bars – 1'' or 2.54cm,
- Needle size 130/21 Nm,
- Stitch type – chain stitch,

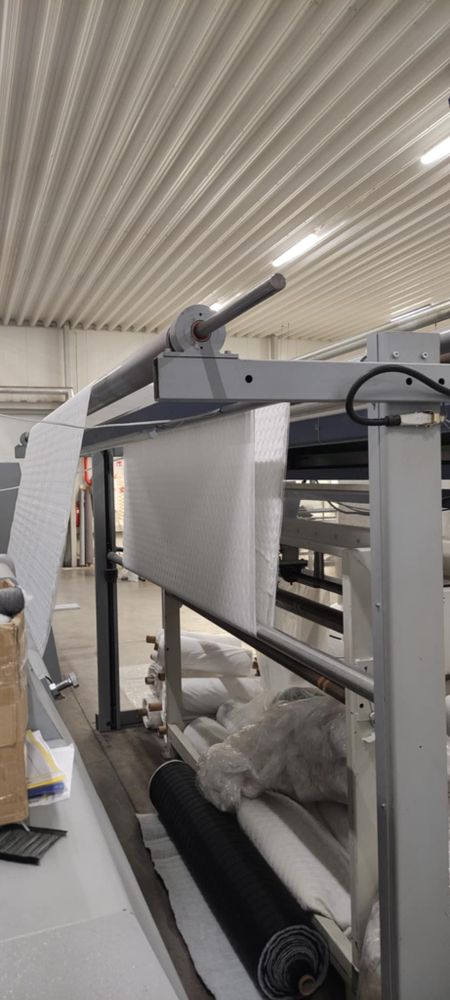

- The machine has an integrated quilted fabric feeding and rolling device, with the possibility to cut the quilted fabric lengthwise,
- For machine operation, a separate control cabinet is installed with an integrated control computer,
- Machine parameters such as speed, stitch length, design selection, corner alignment, and thread feeding for quilting.
