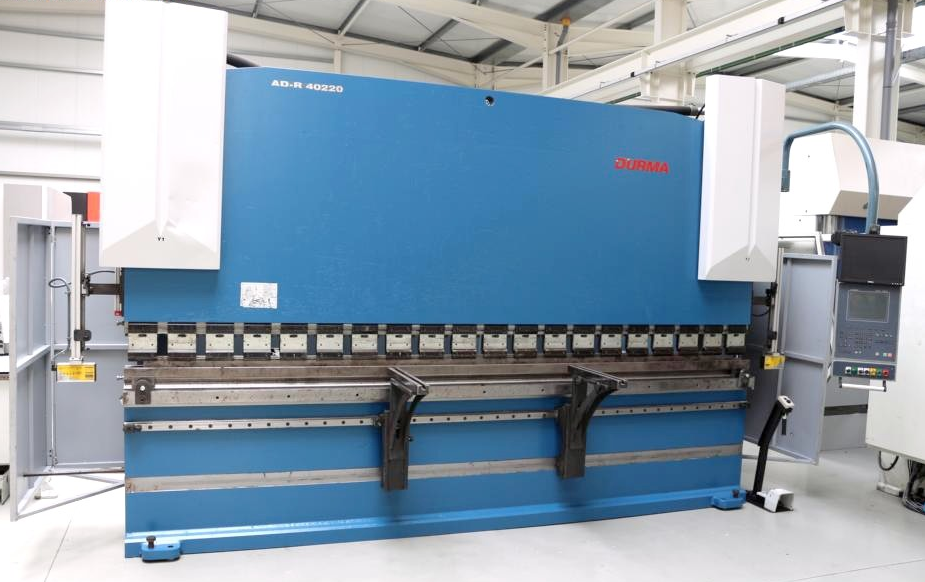

Durma CNC AD-R 40.220 220 t

DURMA CNC AD-R 40.220
Year of manufacture 2014

pressure:220 t
chamfer lenght:4050 mm
distance between columns:3600 mm
stroke of upper beam:265 mm
throat:410 mm
dayligth:530 mm
ajustment speed:160 mm/sec
working feed:10.0 mm/sec
return speed:140 mm/sec
Control:DNC 880 S
work height max.:900 mm
table width:104 mm
back stop - adjustable:max. 675 mm
oil volume:250 l
total power requirement:22.0 kW
weight:15600 kg
range L-W-H:5250 x 1770 x 2950 mm


Equipment:
- CNC electro-hydraulic press brake
* Stress-relieved steel construction body = durable monoblock frame
- CYBELEC CNC control model DNC 880 S
* graphic display (extern)
* Product representation as line, area, or volume drawing
* Clear, user-friendly menus in the operator's language
* Extensive tool and product library
* Graphic 2D programming
* Automatic bending sequence calculation and collision detection
* Pivoting control panel, front right
- CNC-controlled axes: Y1 + Y2 + X + R axes + CNC crowning
- CNC electro-motorized backgauge (X axis)
* With 2 manually adjustable stop fingers (Z axis)
* Backgauge with ball screw + linear guides
* Travel speed .. 250 mm/sec.
- CNC electro-motorized height adjustment of the backgauge (R axis)
* Max. travel 250 mm
* Travel speed 140 mm/sec.
- CNC electro-motorized lower beam crowning
- FIESSLER laser safety device at the front
- Upper tool holder with upper wedge crowning & quick-change adapter (AMADA)
* Includes split tool set
- 1x universally rotatable MULTI-V die block
- 2x front + sliding robust support arms
* Mounted on a linear guide rail system
- Side safety guard (swinging doors)
- Rear safety guard (swinging door)
- 1x freely movable foot switch
- Operating instructions (PDF)
