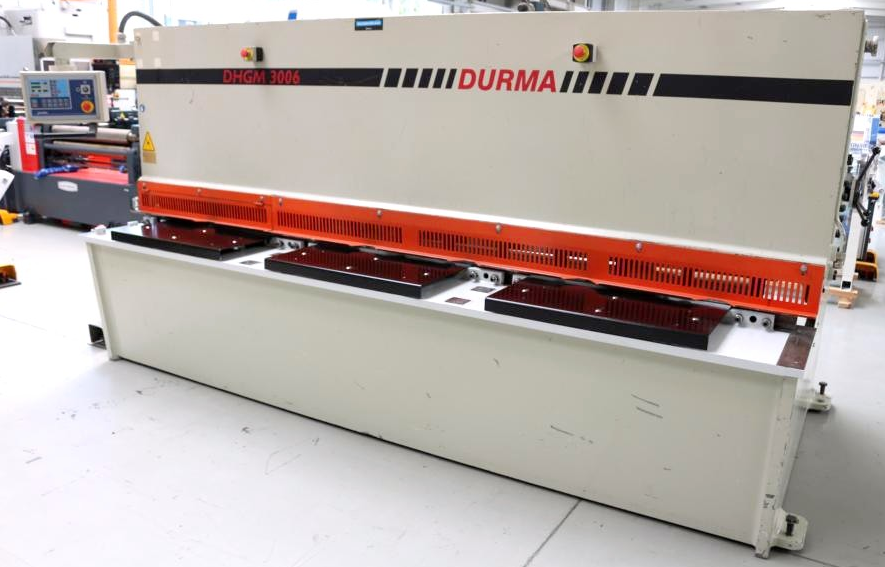

Durma DHGM 3006

Sheet width: 3100 mm
Plate thickness: 6.0 mm
Thickness at stainless steel: 4.0 mm
Down holder: 14 pcs
Number of strokes max: 15 strokes/min
Cutting angle: 1°15
Work height max: 770 mm
Column arm: 350 mm
Oil volume: 170 l
Control: ENC 100
Total power requirement: 15.0 kW
Machine weight: 7500 kg
Machine dimensions (LxWxH): 3850 x 1950 x 1700 mm

NC electro-hydraulic swing beam shear
DURMA ENC 100 digital control unit
Operator control pivoting to the front left
NC electro-motorized backgauge travel 1000 mm (X axis)
Recirculating ball screws
Manual quick cutting gap adjustment via eccentric right side column
Machine column with 350 mm overhang
Extra-long side stop with mm scale
2x front support arms with mm scale
Ball transfer units in the front support table
Front hinged finger guard
Freely movable foot switch
Rear safety device protective grid
2x emergency stop buttons at the front
Operating instructions (PDF)
