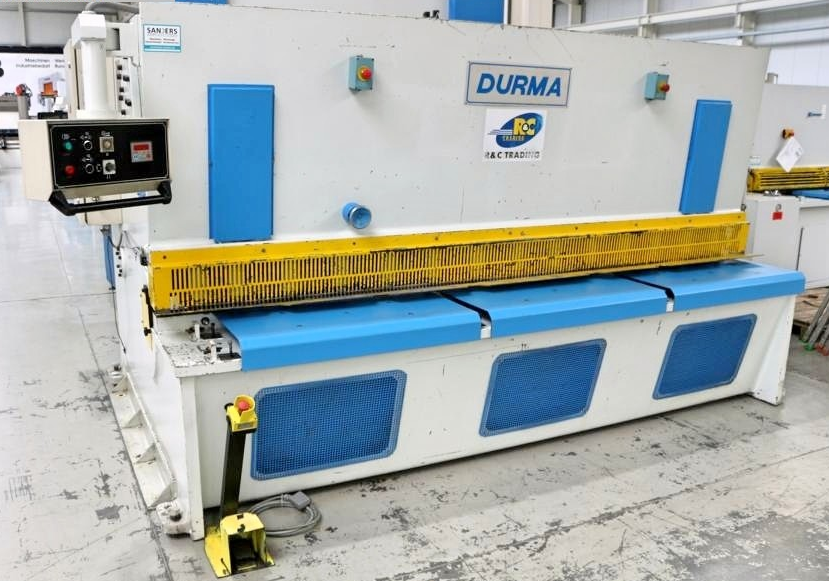

Durma DHGM 3013

Sheet Width: 3100 mm
Plate Thickness: 13.0 mm
Thickness at Stainless Steel: 8.0 mm
Down Holder: 14 pcs
Number of Strokes: Max. 11 strokes/min
Cutting Angle: 1°15’
Max Work Height: 770 mm
Oil Volume: 300 ltr.
Control: Conventional
Total Power Requirement: 15.0 kW
Weight: 11800 kg
Range L-W-H: 4255 x 2250 x 2400 mm
Robust Electro-Hydraulic Swing Pruning Shears
Operation Swivels to the Front Left
Electro-Motorized Backgauge on Recirculating Ball Screws
Backgauge Movement by Push-Button (Forwards/Backwards)
ELGO Digital Position Indicator
Manual Quick Cutting Gap Adjustment by Eccentric (Right Side Stand)
Machine Stand with Overhang
1x Long Side Stop with mm Scale
2x Front Support Arms with mm Scale
Ball Rollers in Front Support Table
Hinged Front Finger Guard
1x Free-Moving Foot Switch
Rear Safety Device (Protective Grille)
2x Front Emergency Stop Button
Operating Instructions (PDF)
