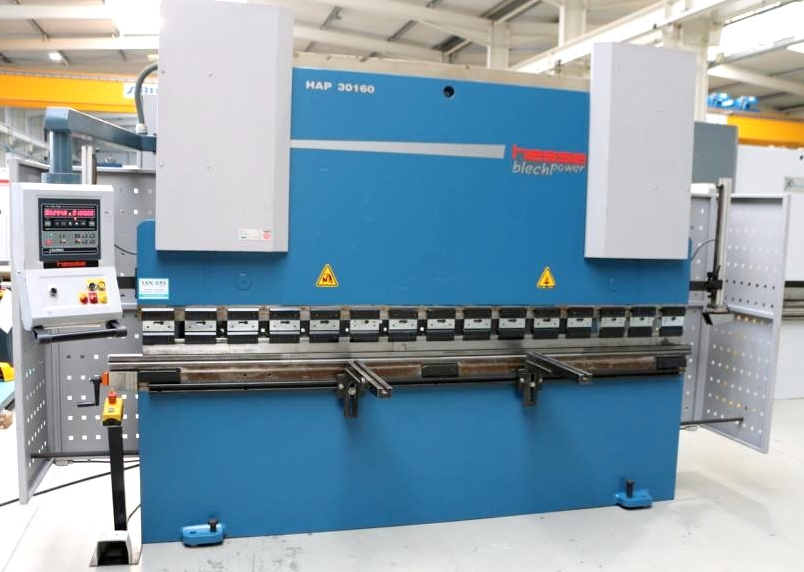

Durma HAP 30.160 160 t

Press Force: 160 t
Bending Length: 3050 mm
Distance Between Columns: 2550 mm
Upper Beam Stroke: 175 mm
Daylight: 240 mm
Throat Depth: 350 mm
Working Feed: 9.0 mm/s
Return Speed: 86.0 mm/s
Max Working Height: approx. 920 mm
Control Type: NC
NC Control: ERD 110 M
Oil Volume: 150 l
Total Power Requirement: 15.0 kW
Machine Weight: 9300 kg
Machine Dimensions: 4250 x 2170 x 2800 mm
NC Electro-Hydraulic Press Brake
Illuminated LCD Display
X-Axis Control and Display
Y-Axis Control and Display
Swiveling Operator Panel
NC Controlled Axes Y1/Y2
NC Controlled X-Axis
NC Motorized Backgauge
Manual Adjustable Stop Fingers
Lateral Adjustment Z-Axis
Height Adjustment R-Axis
NC Motorized Depth Adjustment Y-Axis
Manual Table Crowning
Upper Tool Holder AMADA/PROMECAM
Quick-Change Upper Tool Adapter
Split Upper Tool
Lower Tool Holder AMADA/PROMECAM
Split 4V Universal Die
Front Support Arms
Side Safety Guard
Rear Safety Guard
Foot Switch
Operating Instructions
