Durma HAP 30.90 90 t press capacity

Chamfer length 3050 mm
Distance between columns 2550 mm
Upper beam stroke 135 mm
Daylight 180 mm
Throat 350 mm
Working feed 8 mm/sec
Return speed 68 mm/sec
Max work height 805 mm
Adjustable backstop max 620 mm
Control DURMA ENC 310
Oil volume 100 L
Total power 7.5 kW
Weight 5840 kg
Dimensions 4000 x 2040 x 2450 mm

NC electro-hydraulic press brake
Illuminated LCD display for X & Y axis control and values
Swiveling operator panel front left
NC-controlled axes Y1/Y2 + X
NC electro-motorized backgauge X-axis

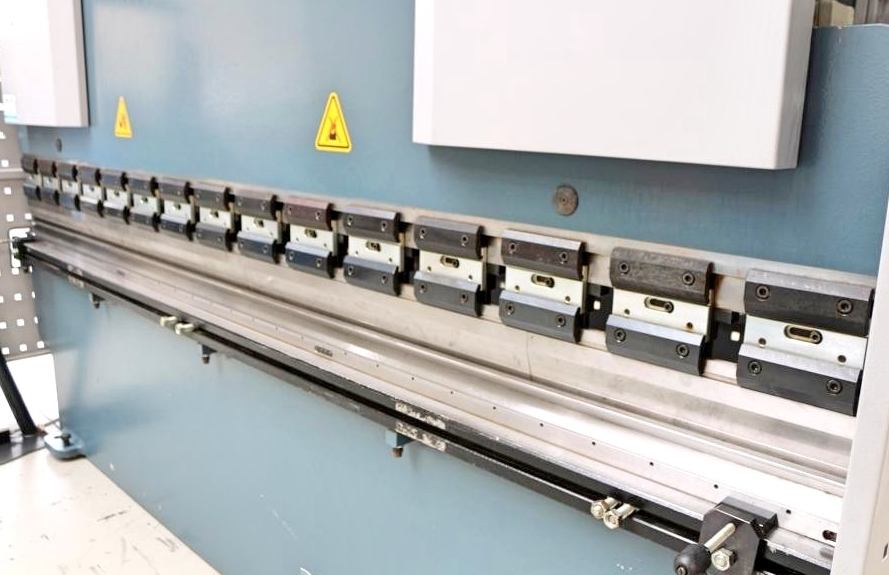

Manually adjustable backgauge fingers 2x
Lateral and height adjustment Z+R axes
NC electro-motorized depth adjustment Y-axis
AMADA/PROMECAM upper tool holder
Top wedge crowning & quick-change adapter
AMADA/PROMECAM lower tool holder
Split 4V universal die
Side swinging door guard
Rear swinging door guard
Freely movable foot switch
Machine in very good condition
Video inspection available
