Durma SB 4006 HH

Sheet width: 4100 mm
Plate thickness: 6.0 mm
Stainless steel thickness: 4.0 mm
Number of strokes: 12–24 strokes/min
Cutting angle: 1°30′
Work height max.: 865 mm
Back stop adjustable: 1.0–1000 mm
Downholder: 20 pcs
Control: ENC 100 M
Column arm: 50 mm
Oil volume: 200 L
Total power requirement: 15.0 kW
Machine dimensions (LxWxH): 5230x2250x2150 mm
Machine weight: 11460 kg

NC electro-hydraulic swing cut shears
DURMA ENC 100M NC control unit
Back stop pre-selection X axis
Quantity function
Cutting length limitation
Pivoting operation front left
Monoblock welded steel construction high-quality steel
CNC electro-motorized back stop
Ball screw and linear guides
Automatic retraction of back stop during cutting
Light barrier protection at rear
Manual cutting gap adjustment via eccentric
High-performance hydraulic cylinder SAM 1040 material
Chrome-plated and finely ground hydraulic piston
Split fold-up finger guard 1000 mm
Sheet handling via ball rollers in table
1x long side stop with mm scale and tilting cam

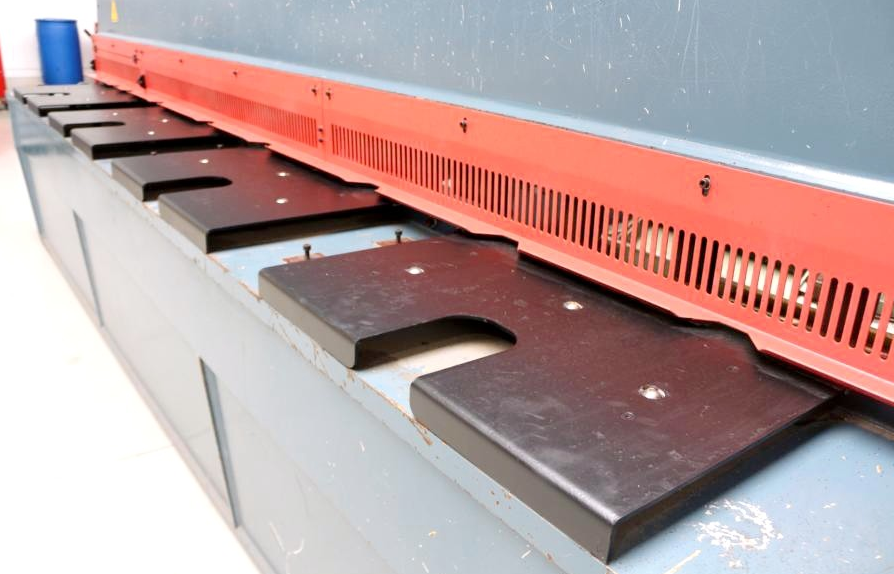

3x front support arms
1x freely movable foot switch
Operating instructions
Pneumatic sheet holding device for thin sheet metal cuts up to 3.0 mm thickness
