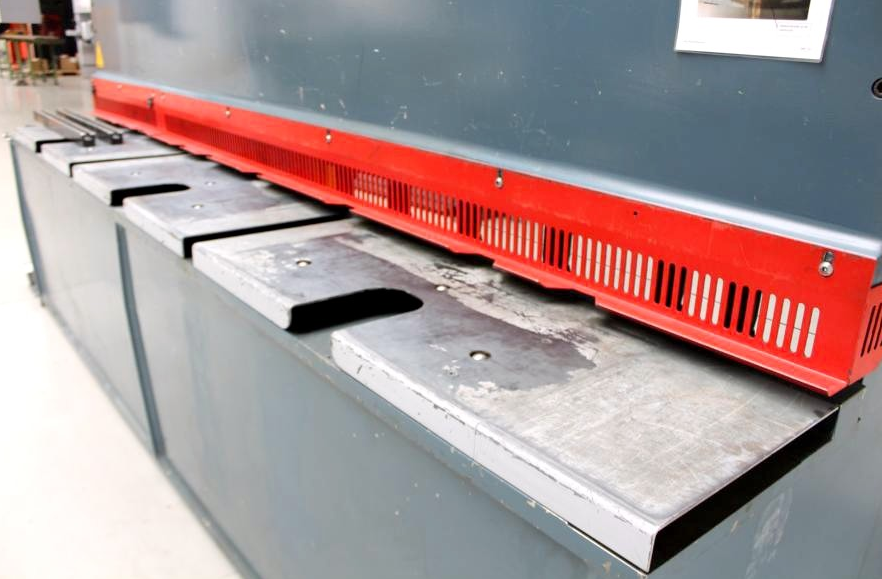

Durma SBT 3006 NT

Sheet width 3100 mm
Plate thickness 6.0 mm
Thickness at stainless steel 4.0 mm
Distance between columns 3120 mm
Down holder 16 pcs
Oil volume 200 l
Cutting angle 1°30′
Number of strokes 15 strokes/min
Control ENC 100
Table width 500 mm
Throat 50 mm
Total power requirement 15 kW
Machine weight 7650 kg
Machine dimensions 4110 x 2200 x 2100 mm
NC electro-hydraulic swing cut shears
NC control DURMA ENC 100 pivoting front left
Back stop pre-selection X axis
Quantity pre-selection
Cutting length limitation
Pivoting operation front left
NC electro-motor-controlled back stop
Back stop travel 1000 mm X axis
Back stop on ball screws
Back stop travel speed 200 mm/sec
Manual cutting gap adjustment via eccentric adjustment
Hydraulic hold-down device
Side stop 1500 mm with mm scale
2 front support arms 1000 mm
Ball rollers in front support table with recessed grips
Hinged finger guard with safety switch
Freely movable foot switch
Original operating instructions
