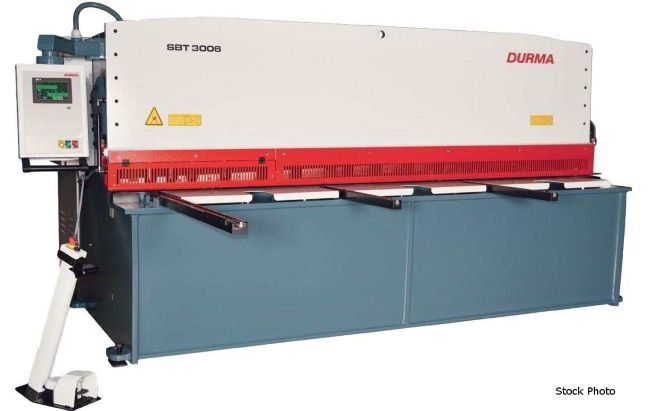

Durma SBT 3006

Cutting Length 10' 2"
Cutting Capacity Mild Steel 0.236"
Cutting Capacity Stainless Steel 0.157"
Throat Depth 1.96"
Strokes per Minute 15 SPM
Cutting Angle 1.5°
Holddowns 16
Holddown Force 31,500 lbs
Backgage Range 39.37"
Backgage Power 1 HP
Backgage Speed 4.72"/second
Motor Power 20 HP, 3 Phase, 480 V
Oil Capacity 52 Gallons
Table Length 11' 6"
Table Width 19.68"
Table Height 34.05"
Machine Dimensions 162" x 87" x 83"
Machine Weight 16,830 lbs

Heavy, Robust Construction
Rigid Swing-Type Upper Beam
Optimized Cutting Angle
Oversized Roller Bearing Guides
Box Constructed Swing Beam
Low Maintenance Operation
Heavy-Duty ST44 Steel Construction
User-Friendly CNC Touch Screen Control Unit
Single-Point Manual Blade Gap Adjustment
Ball Transfers in Table
Ballscrew Back Gauge with 39" Travel
59" SQ Arm with Scale, T-Slot, Tilting Stop
Two 39" Front Support Arms with T-Slot, Tilting Stop
Illumination and Shadow Line
1 Meter Flip-Up Finger Guard
Automatic Pressure Adjusted Solid Holddowns
Foot Pedal
Automatic Swing-Up Back Gauge
Pneumatic Thin Sheet Support Device
