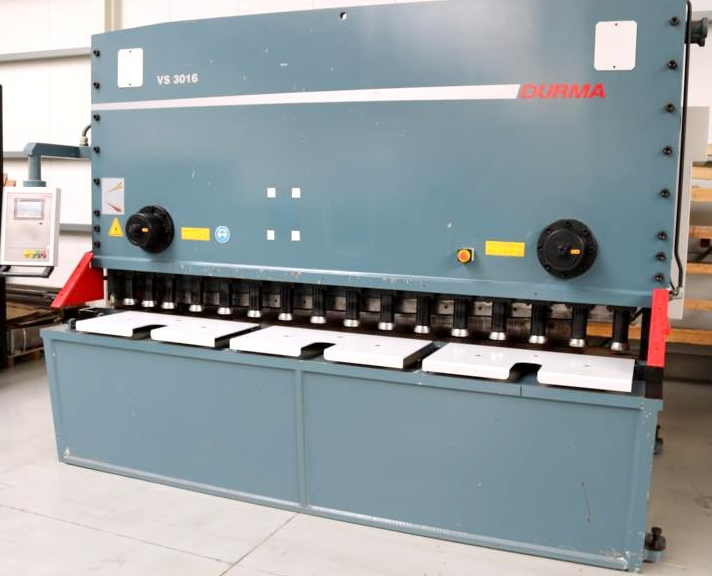

Durma VS 3016

Sheet width: 3080 mm
Plate thickness: 16 mm
Thickness for stainless steel: 12 mm
Cutting angle: 0.5–2.5°
Number of strokes: 7–12 strokes/min
Backgauge adjustment: max. 1000 mm
Traversing speed: 200 mm/s
Working height: 840 mm
Hold-down clamps: 14 pcs
Column width: 3420 mm
Throat depth: 350 mm
Control: D-Touch 7
Oil volume: 450 l
Voltage: 400 V
Motor power: 45 kW
Machine weight: 18150 kg
Machine dimensions: 4130x2210x2570 mm

Equipment
Electro-hydraulic sheet metal shear (guided type)
CNC control D-Touch 7 with touchscreen
7" anti-reflective color display
Easy positioning to desired size
Positioning accuracy 0.1 mm
Unlimited material library
Intuitive menu navigation
Separate display for actual and target values
Backgauge retraction function
Adjustable stroke length for cutting control
Cut counter
Automatic stop when programmed cuts are reached
CNC motorized backgauge with ball screws and linear guides
CNC motorized cutting gap adjustment
CNC electro-hydraulic cutting angle adjustment
Heavy-duty welded steel construction
Ergonomic control panel
Hold-down clamp near cutting edge
Front light barrier
Self-regulating hold-down clamp pressure
Rear safety light barrier
1 side stop (L = 1500 mm)
2 support arms (L = 1000 mm each)
Sheet supports with ball rollers
Mobile foot switch with emergency stop
High-quality regrindable split blades
Rear sheet chute
Operating instructions (PDF)
