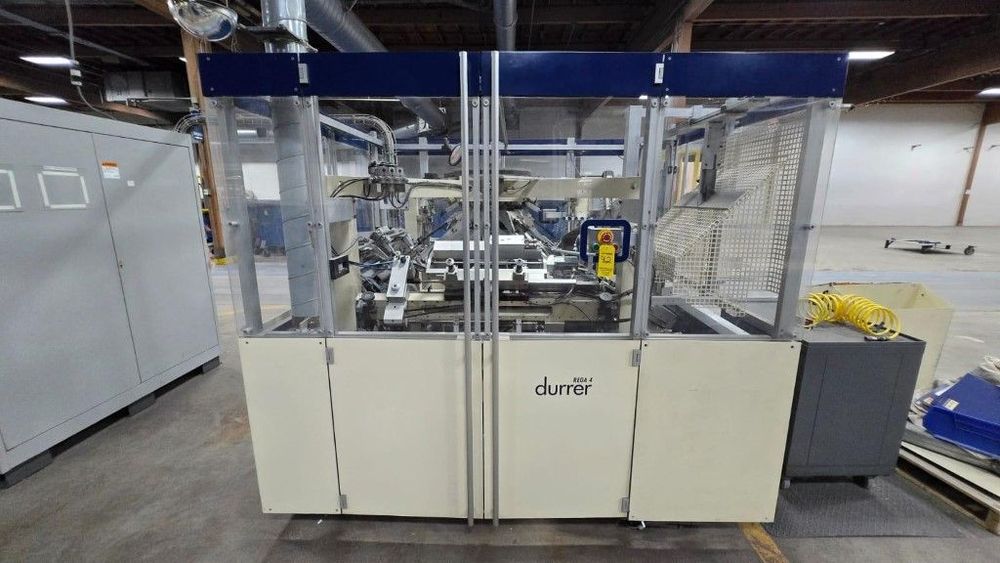

Durrer REGA 4

Format Range:
Maximum Format: 320 x 250 mm (12.6 x 9.8 inches)
Minimum Format: 130 x 90 mm (5.1 x 3.5 inches)
Optional: Can be configured for formats down to approximately 100 x 75 mm (3.9 x 3 inches).
Book Thickness: Maximum 25 mm (0.98 inches) (depending on product specifications).

Cut Forms:
Angular Cut (straight index tabs)
Form Cut (various shapes)
Corner Rounding (optional)
Corner Perforation (optional)

Index Types:
European/Arabic index
Combined indexes
Double and multiple indexes
Register Cutting Depth: 25 mm (0.98 inches)
Punching Axes: 1 axis (fully automatic process)

Printing Capabilities:
Index printing with 1 or 2 colors.
Print Content: Letters and words on both printed and non-printed indexes.

Performance:
Output: Maximum 1,500 pieces per hour (output can vary from 100 to 1,500 pcs/hour depending on product complexity and setup).

Physical Specifications:
Dimensions (L x W x H): Approximately 3,900 x 2,700 x 2,000 mm (153.5 x 106.3 x 78.7 inches)
Weight: Approximately 2,300 kg (5,070 lbs)
